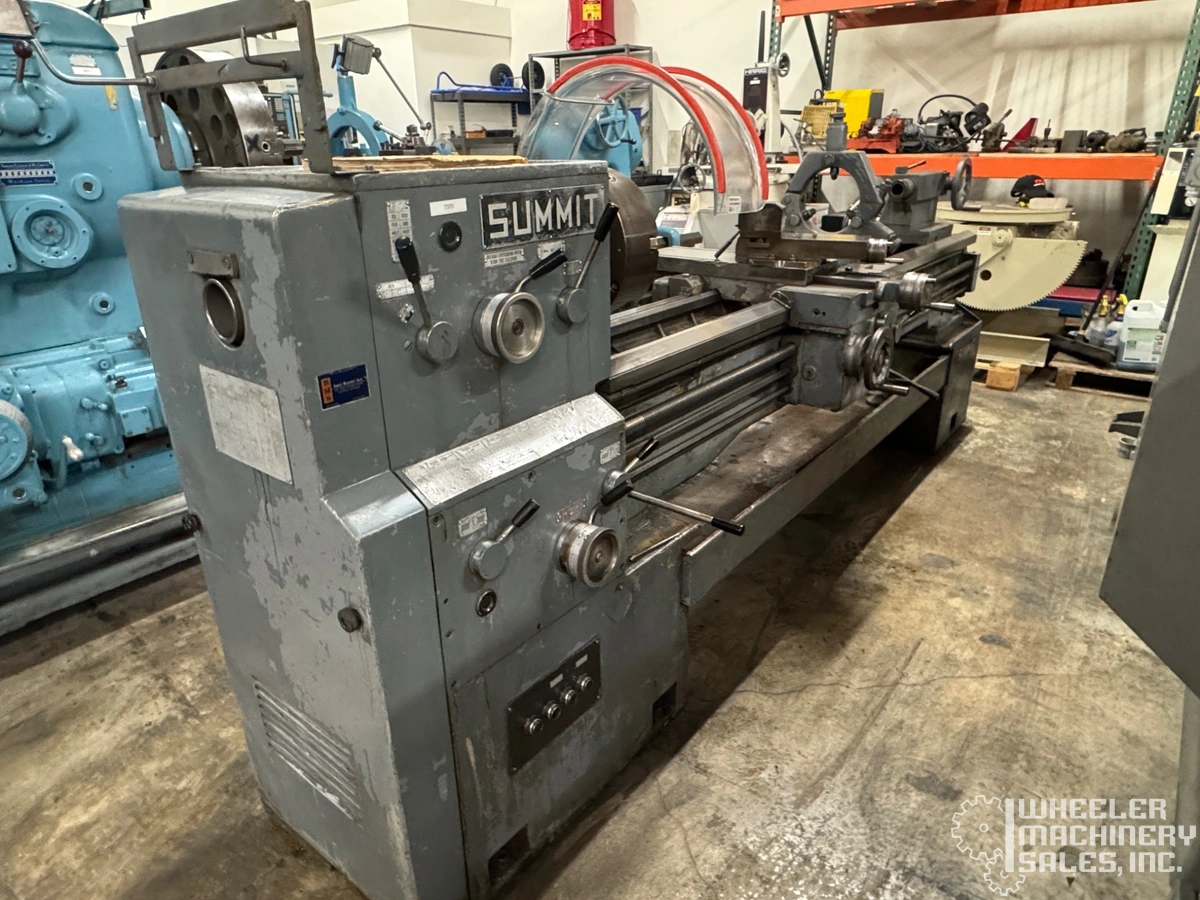

Summit 20-4 x 80 Gap Bed Engine Lathe #7370 #2

Summit 20-4 x 80 Gap Bed Engine Lathe #7370 #2

GENERAL SPECIFICATIONS:
Swing Over Bed: 20-1/4"
Swing Over Gap: 27-5/8"
Swing Over Cross Slide: 11-7/8"
Distance Between Centers: 80"
Spindle Speeds: (15) 11.5 - 1400 RPM
Hole Through Spindle: 4-1/8"
Spindle Nose: D1-8 Camlock
Threads: (64) 1/4 - 60 TPI
Metric Threads: (64) .5 - 120
Longitudinal Feeds: (124) .00145 - .44474
Cross Feeds: (56) .0007 - .22237
Cross Slide Travel: 11-3/8"
Compound Rest Travel: 5-3/8"
Tailstock Spindle Travel: 9-1/2"
Tailstock Spindle Taper: No. 4 M.T.
Bed Width: 15-3/4"

EQUIPPED WITH:
10 HP Motor
Inch/Metric Threads w/Single Switch Lever
Hardened and Ground Bed Ways
12" 3-Jaw Chuck w/2 Piece Jaws
Taper Attachment, +/- 10 Degrees, 15-3/4" Maximum Turning Length Per Setting
Thread Dial
Four Way Rapid Traverse
Two Speed Tailstock
Force Lubrication To Headstock, Carriage, and Bedways
Coolant System
Full Length Splash Guard
