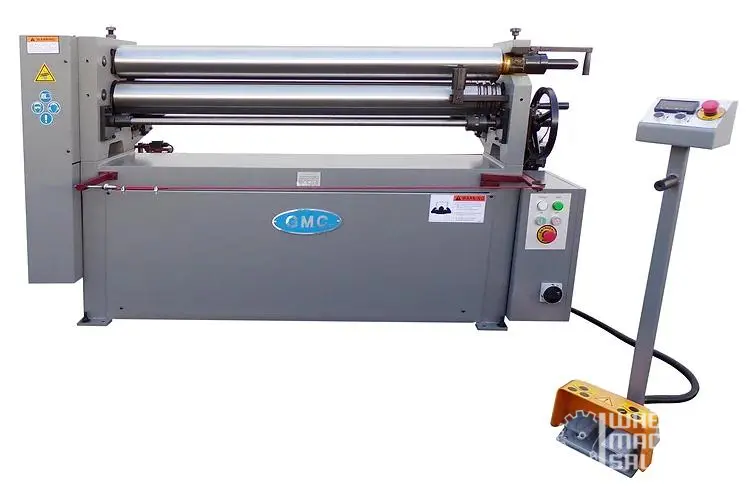

New GMC Power Bending Rolls 5' x 12 Ga. PBR-0512E
Have one to sell?
$14,850.00 USD
ConditionNew
1 available
New
Introducing the new GMC PBR-0512E, a robust plasma/oxygen cutting system with a 5' roll length and 12-gauge capacity. Featuring a heavy-duty frame, hardened rolls, and advanced safety features, this powerful machine ensures high-precision results.
SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts
Capacity:
Mild Steel
Stainless Steel
soft aluminum
min. thickness
5'1" x 12Ga.
5'1" x 12Ga.
5'1" x 1/4"
26Ga.
Roll Dia. 4"Min.
Bending Dia. Inch5"
Pre-bend inch0.
12"Rolls Speed ft/min20Rolls Opening
1/2"Main Motor3HP 3PH 220V or 440VWeight2,950 lbs. Overall Dimensions 96" x 32" x 52"
Length of Rolls: 5'
Max Thickness (gauge): 12 gauge
# Rolls: 3
Power: 3 hp
Roll Diameter: 4"
