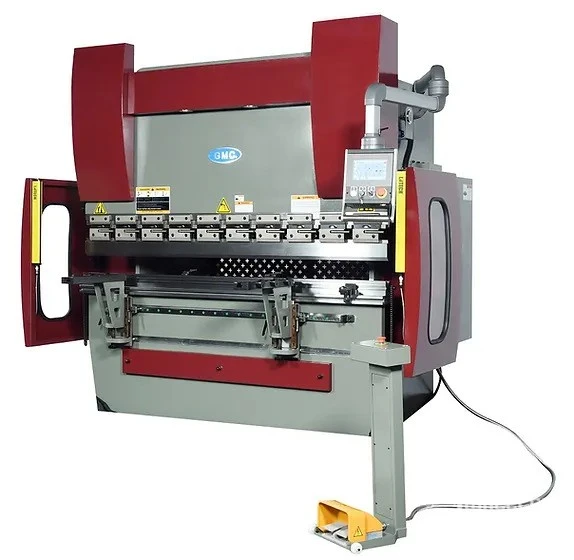

New GMC 70-Ton 6’ CNC Press Brake with 3-Axis HPB-7006CNC-3R

70-Ton 6’ CNC Press Brake with 3-Axis SKU: HPB-7006CNC-3R

Our 70 ton press brake are equipped with a three axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.

ISO 9001 certified

Meet OSHA and CE safety standard

ESA (Italy) Model 630, 3 Axis CNC Controller

Die library, offline programming, stores thousands of programs

Programmable Angle/ Angle Correct

10” Touch screen

3 Axis CNC Graphic Controller

Y axis Ram with high precision linear encoder

X servo Back gauge

R programmable Back gauge height

Line by line coding

2D Graphic Drawing Mode

Bend Sequence Optimization for collision detection

Spread Length Calculation

Germany Rexroth hydraulic system

Yaskawa Servo motor and Drives

Schneider electrical components

All steel construction for maximum rigidity

Hydraulic logic system centrally located and quiet

Safety type foot pedal with handle and E-stop switch

Safety 24V low voltage & overload protection

One year industrial warranty for parts

- ESA (Italy) Model 630, 3 Axis CNC Controller
- (2) 24” front support arms, Quick Release for easy positioning
- Quick release segmented (American Style Tooling) punch holder
- Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard

For ¼” tooling: Need single V die holder -call for pricing

4’ of punch and 2.5” single V Die , Flame hardened with safety tang call for pricing

On-site training, one day…………………………….. call for pricing

Maximum Pressure 70 Tons

Bending Lenght Capacity 80" (6'8")

Distance Between Uprights (housing) 63"

Ram Stroke Travel

Cylinder Travel Adjustment (max)

6"

3 1/8"

Table Width 6"

Distance Between Table and Ram

Max Stacked Tooling Height

15 1/4"

8-1/2"

Throat Depth 10"

Back Gauge Distance 24"

Back Gauge Repeatability .0039"

Y-Axis Repeatability .0039"

Approach speed, inch / second

Working speed, inch / second

Return speed, inch / second

3.14”

0.35”

2.36”

Main motor:

Servo motor for back gauge:

Servo motor for bending angle

setting

Amperage draw

7-1/2 HP, 3 Phase : 220V or 208V

1 HP, 3 Phase 220V or 208V

1/2HP, 3 Phase 220V or 208V

30 AMPS

Hydraulic oil tank capacity:

Recommended Oil:

52 Gal.

Hydraulic Oil Shell #68HD

Machine weight:

Machine size, L x W x H:

Shipping Dimensions:

8,650 LBS

103" x 63" x 87”

109"x66"x98"
