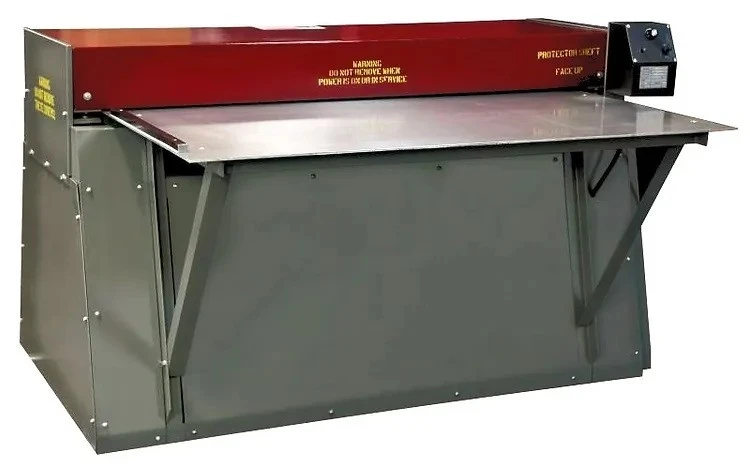

New GMC Diamond Forming Machine - DFM-20

New GMC Diamond Forming Machine - DFM-20

This machine is ideal for making stainless steel diamond plate patterns for truck doors, catering trucks, kitchens, toolboxes and other decoration applications. 4” x 4” diamond embossed pattern for stainless steel sheets is the standard pattern.

ISO 9001 certified

1-Year parts only warranty

Emboss up to 4 foot stainless steel sheet metal x 20 Ga.

18” throat depth

Steel welded framework

High grade ball bearings

2 – Top forming steel rolls

2 – Bottom pressure rubber rolls

Variable speed control

Overload protection fuse

Infeed table with side gauge

Easy for one person operation

2” x 2” Diamond Pattern ………….. Call for pricing

3” x 3” Diamond Pattern ………….. Call for pricing

MODEL# DFM-20

Max. material capacity (width): 4 foot sheets (50")

Diamond Size: 4" x 4"

Max. material thickness: 20 Ga.

Variable speeds: 9-16 RPM

Motor: 2 HP - 110V / 60 HZ

Net Weight: 1,650 lbs.

Dimensions: 63" x 53" x 43"
