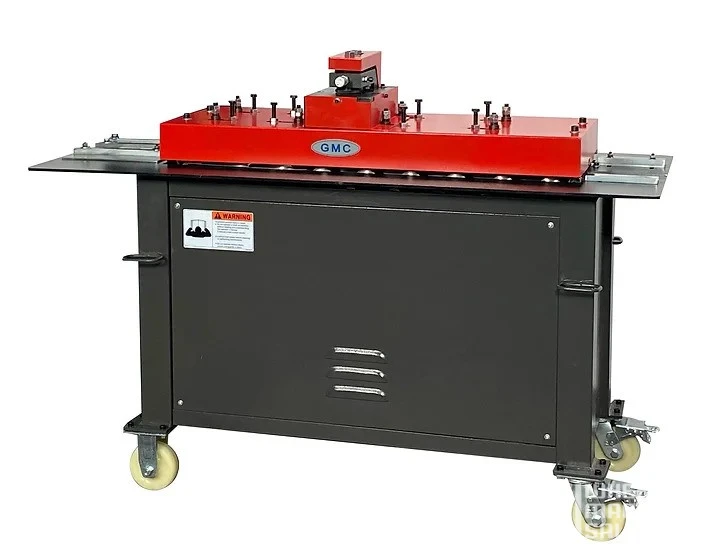

New GMC 18 Ga. Pittsburgh Machine Lock Forming Machine PL-18E

18 Ga. Pittsburgh Machine | Lock Forming Machine PL-18E

ISO 9001 certified

3HP Heavy Duty AC main motor, 220V, 3 phase

Heavy welded all steel construction for maximum rigidity

It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.

Heavy welded all steel construction for maximum rigidity

ACME side can be operated at same time

One year warranty for parts

Standard Pittsburgh Attachment # PA-18E, installed

Slip & Drive Roll (S & Drive)# SDR-18E , installed

Drive Cleat Roll # DCR-18E, installed

Double Seam Roll # DSR-18E, installed

Power Flanger # PF-18E, installed

Right Angle Roll # RAR-18E, ¼” | 3/8” & ½” - call for pricing

Optional Die for 1//2” hem……… - call for pricing

Digital Inverter Drive control box for converting to PL-18E-1phase, add - call for pricing

Capacity:

Pittsburgh Lock

26 Ga. - 18 Ga.

S Drive Lock26 Ga. - 20 Ga.

Right Angle Lock26 Ga. - 20 Ga.

Drive Cleat Lock26 Ga. - 18 Ga.

Double Seam Lock26 Ga. - 18 Ga.

Power Flange 1/4:26 Ga. - 20 Ga.

Depth of Pocket1/2"Feeding Speed23 FPMMain Motor3 HP, 3 Phase 10 AMP

Prewired: 220VAC

220V, 1phase is optional

Weight Approx998 LBSMachine Dimensions (LxWxH):

Shipping Dimensions:

60"x26"x46"

63"x27"x48"
