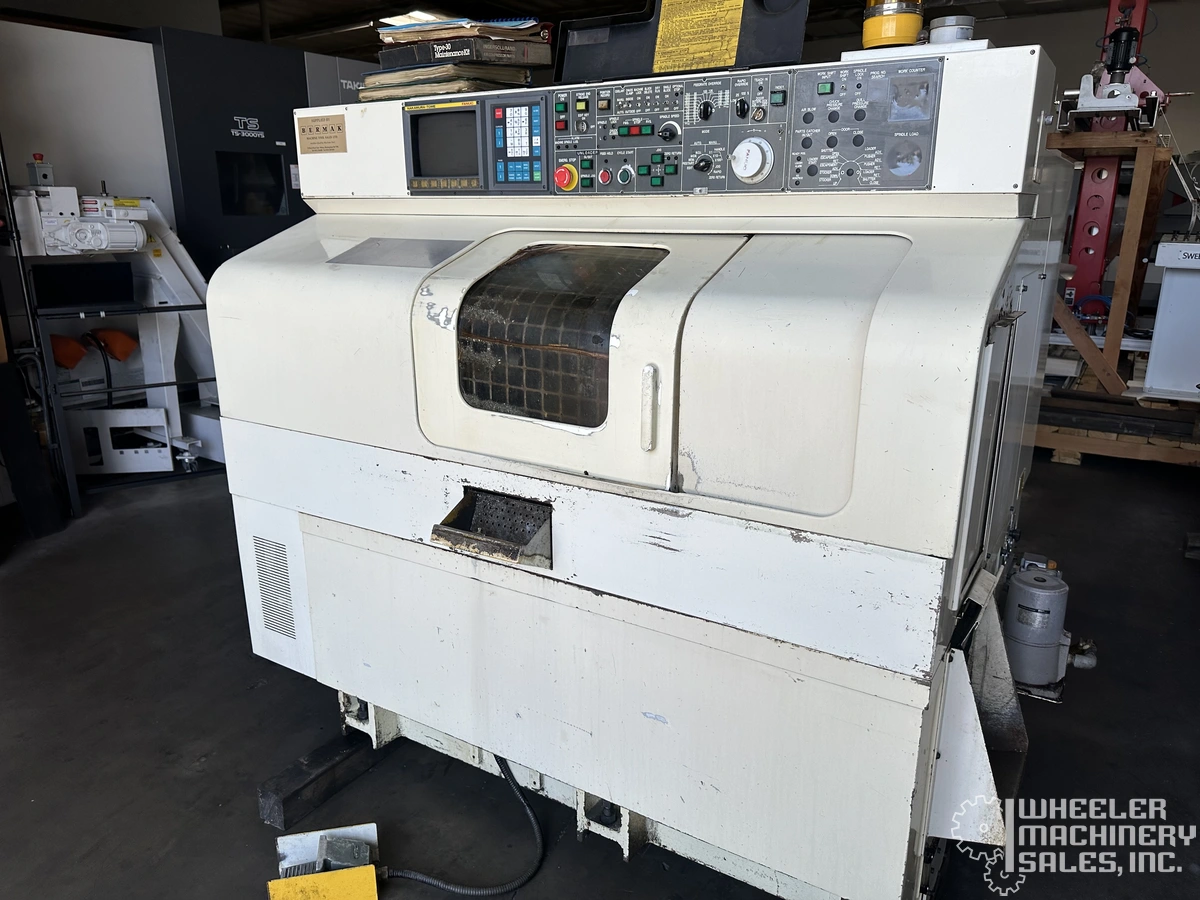

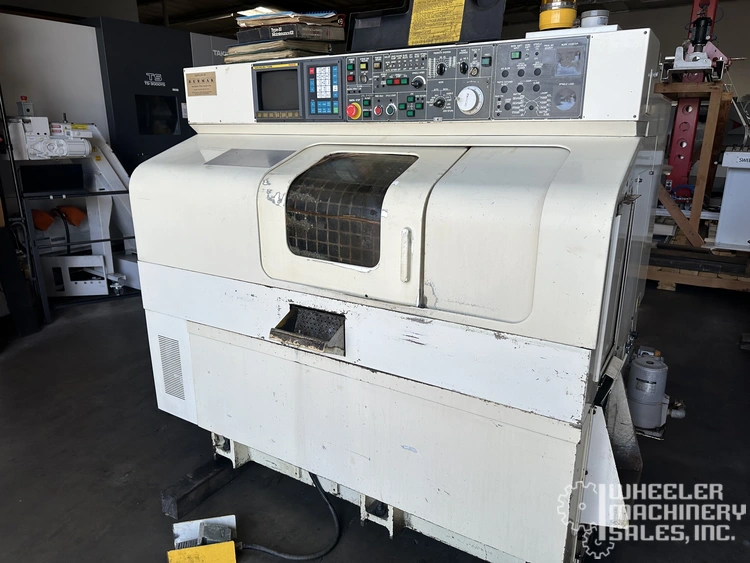

Nakamura Tome TMC-15H CNC Lathe #7254 #1
Have one to sell?
$10,500.00 USD
ConditionUsed
1 available
Nakamura Tome TMC-15H CNC Lathe, Model #7254; used slant bed lathe with max swing over bed of 11.81", spindle speeds 112-4500 RPM, and 10-station tool turret. Equipped with FANUC CNC control, Multifeed ML-1 bar feed, and parts catcher.
Nakamura Tome TMC-15H CNC Lathe #7254 #1
SPECIFICATIONS:
MAX SWING OVER BED: 11.81"
MAX SWNG OVER SADDLE: 6.69"
MAX TURNING DIAMETER: 7.09"
SPINDLE SPEEDS: 112 - 4,500 RPM
SPINDLE DRIVE: 10 HP
SPINDLE NOSE: A2-5
HOLE THRU SPINDLE: 1.85"
HOLE THRU DRAW TUBE: 1.34"
TURRET CAPACITY: 10 STATIONS
TURRET TRAVELS (X,Z): 4.33" / 10.63"
RAPID TRAVERSE RATE (X/Z): 472 / 945 IPM
MAX BAR CAPACITY: 1.34"
TAILSTOCK?: NO
EQUIPPED WITH:
MULTIFEED MODEL ML-1 Bar Feed (SERIAL 003701)
FANUC CNC CONTROL
10 STATION TOOL TURRET
PARTS CATCHER
