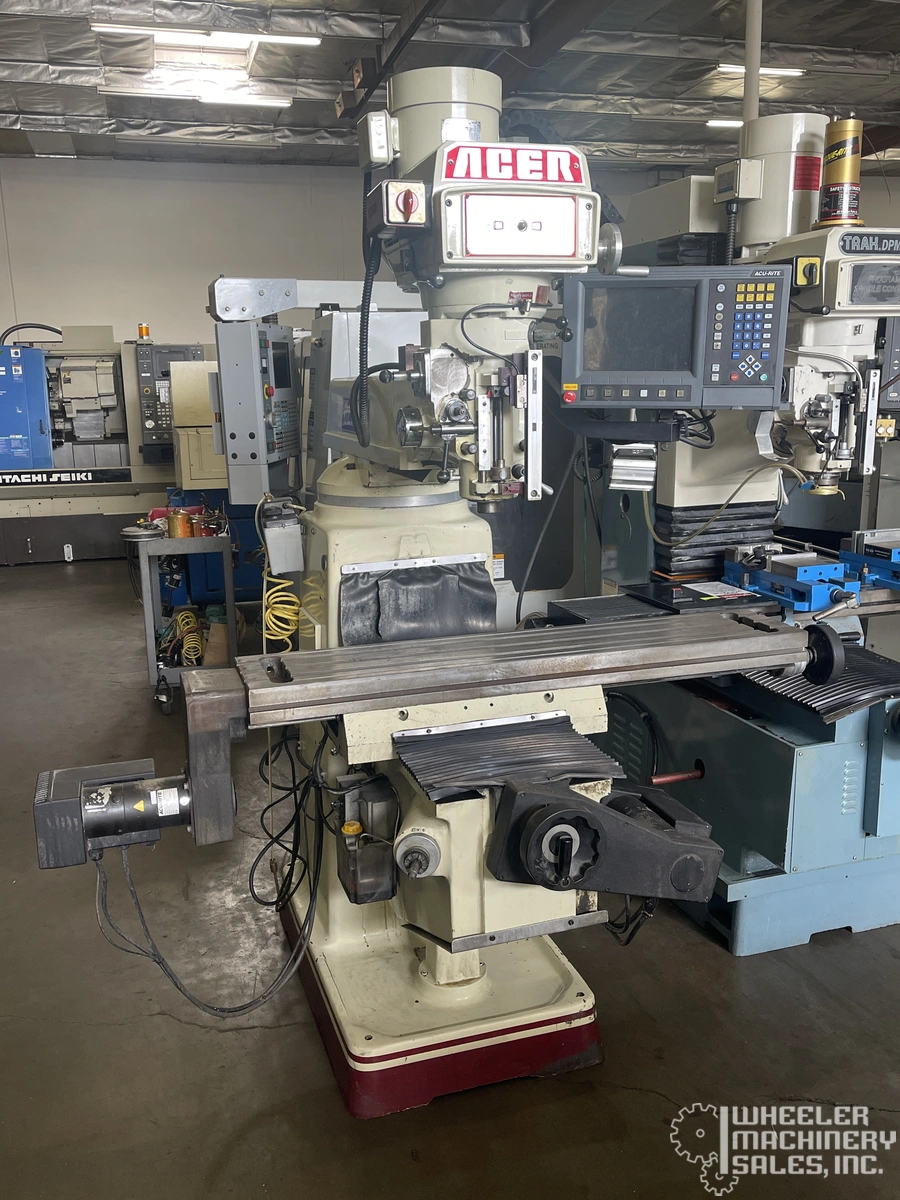

Acer Ultima 3VK 2-Axis CNC Knee Mill w/ Acurite CNC Control #7124 #1
Have one to sell?
ConditionUsed
1 available
$14,500.00 USD
Acer Ultima 3VK used 2-axis CNC knee mill offers precision with a 10"x50" table, 34" travel, 3 HP motor, variable spindle speeds (60-4,500 RPM), and R-8 taper. Features Acurite control, auto lube, and more, ideal for advanced milling tasks.
Acer Ultima 3VK 2-Axis CNC Knee Mill w/ Acurite CNC Control #7124 #1
SPECIFICATIONS:
Working Surface: 10" x 50"
Longitudinal Travel: 34"
Cross Travel: 16"
Vertical Knee Travel: 16"
Ram Travel: 20"
T-Slot Number, Size: 3 at 5/8" width
Main Motor: 3 HP
Head moves right to left : 90°
Head tilts front to back: 45°
Spindle Drive: Variable
Spindle Speed: 60 ~ 4,500
Spindle Taper: R-8
Power Quill Feeds (in / rev.): 0.0015", 0.003", 0.006"
Quill Diameter (Chromed): 3-3/8"
Quill Travel: 5"
Approximate Weight: 3,00 Lb.
EQUIPPED WITH:
Acurite 2-Axis CNC Control
Scale on Quill
Way Covers
Auto Lube
