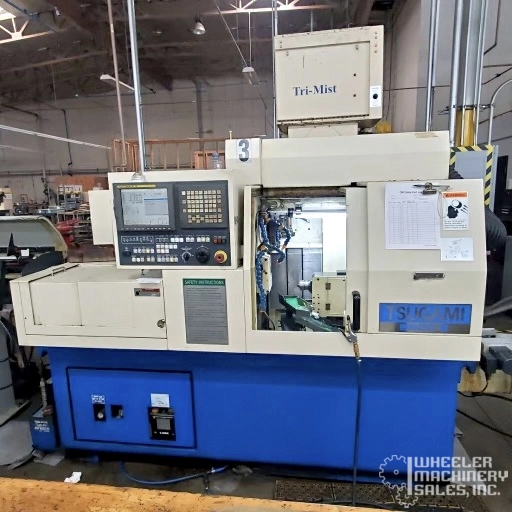

2006 Tsugami BS20(C)-III Swiss Type CNC Lathe #7039 #2
Have one to sell?
$22,900.00 USD
ConditionUsed
1 available
Discover precision with the 2006 Tsugami BS20(C)-III CNC Swiss Lathe. Features include an 8-inch turning capacity, 0.78-inch bar capacity, 8000 RPM spindle speed, 22 tool positions, Fanuc 18i-TB control, and high-pressure coolant system. Ideal for intricate machining.
2006 Tsugami BS20(C)-III Swiss Type CNC Lathe #7039 #2
SPECIFICATIONS:
LIVE TOOLING / MILLING
C-Axis: Equipped With
Y-Axis: Equipped With
Live Tooling / Milling: Equipped With
SPECIFICATIONS
Max Turning / Cutting Length: 8"
SPINDLE
Bar Capacity: 0.78"
Spindle Speed: 8,000 RPM
SECOND SPINDLE
Sub-Spindle: Equipped With
Second Spindle Speed: 7,000 RPM
TURRET
Tool Positions: 22
CONTROL
Control Make/Model: Fanuc 18i-TB Series CNC Control
OPTIONS
Machine Options: Mist Collector
Additional Machine Specs: Main Spindle Drilling Diameter: 0.39"
Tool Spindle Speeds: 200 - 5,000 RPM
Back Rotary Tool Speeds: 200 - 4,000 RPM
EQUIPPED WITH:
MP Systems High Pressure Coolant
Tri-Mist Mist Collector
Parts Conveyor
Coolant Types: High Pressure Coolant
Barfeeder Make/Model: LNS 12' Barfeed
