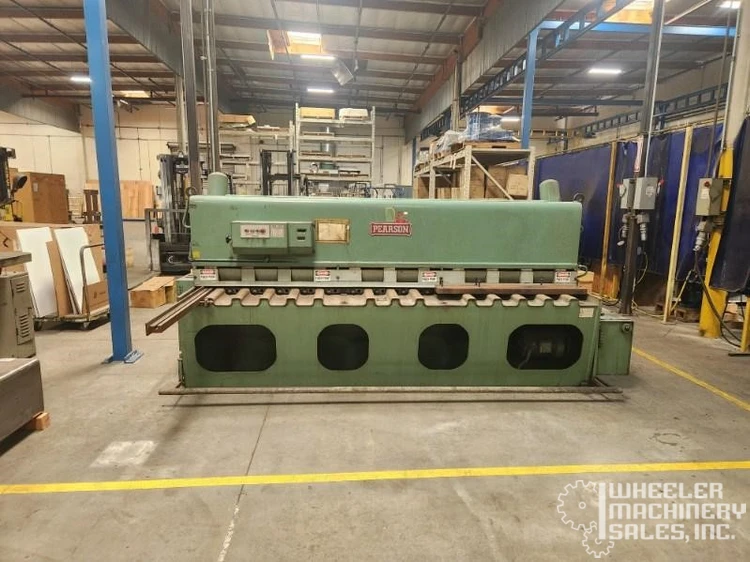

Pearson 10'/.25MS Hydraulic Power Squaring Shear 10' x 1/4" #6934 #2
Have one to sell?
$16,500.00 USD
ConditionUsed
1 available
Used Pearson 10'/.25MS hydraulic shear for sale. Capacity: 1/4" mild steel, 122" knife length, 11 hold downs. Motor: 10 HP, 230/460V, 3-phase. Dimensions: 151"x73"x60", weight: 9,000 lbs. Features a 36" back gauge with manual rake adjustment.
Pearson 10'/.25MS Hydraulic Power Squaring Shear 10' x 1/4" #6934 #2
SPECIFICATIONS:
Capacity, Mild Steel: 1/4"
Length of Knives: 122"
Rake Angle, Taper Per Foot: 5/16"
Number of Hold Downs: 11
Floor to Table Top: 32"
Strokes per Minute: 18 to 50
Motor: 10 HP / 1150 RPM
Volts: 230 / 460
Phase: 3
Cycles: 60
Amps: 25 / 12.5
Approximate Dimensions: 151"LR x 73"FB x 60" High
Approximate Weight: 9,000 lbs.
EQUIPPED WITH:
36" Front Operated Back Gauge
Manual Rake Adjustment
Squaring Arm
Support Arms
