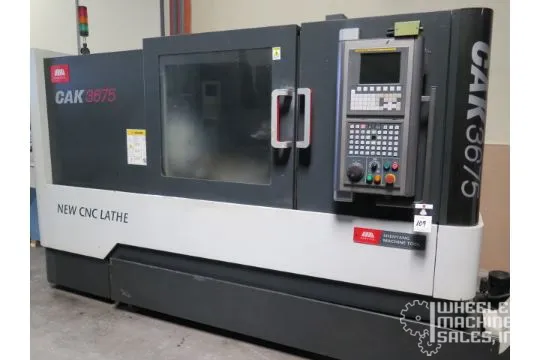

2011 SMTCL CAK 3675 CNC Turning Center #6859 #1
SPECIFICATIONS:
Maximum Turning Diameter: 14.2"
Maximum Turning Length: 25.6"
Maximum Swing Diameter Over Bed: 16.5"
Maximum Swing Over Slide: 10.2"
Spindle Type: A2-6
Maximum Spindle Speed: 2,000 RPM
X-Axis Travel: 7.48"
Z-Axis Travel: 32.1"
Diameter of Tailstock Sleeve: 3"
Taper of Tailstock Sleeve: MT-5
Travel of Tailstock Sleeve: 4.7"
Number of Stations on Turret: 8
Main Motor: 20 HP
EQUIPPED WITH:
Fanuc Series Oi Mate TD Control
8" 3-Jaw Chuck
Chip Conveyor
Coolant System
