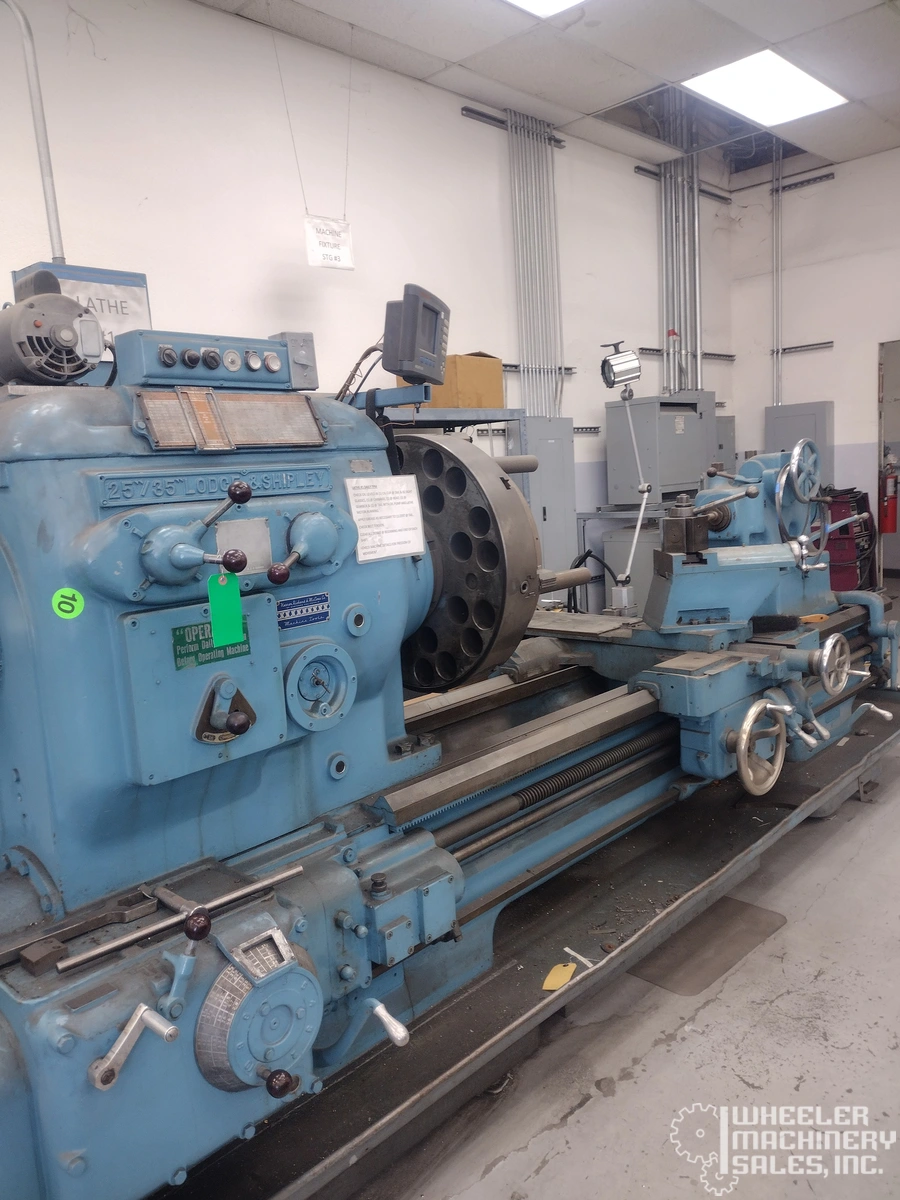

Lodge & Shipley 40" x 77" Heavy Duty Engine Lathe #6771 #2
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available
Lodge & Shipley 40" x 77" Heavy Duty Engine Lathe, Model 25"/35". Features 40" swing over bed, 77" between centers, 25 spindle speeds (9-507 RPM), 30 HP motor. Equipped with 28" 4-jaw chuck, digital readout, 4-way tool post, coolant tank, and work lamp.
Lodge & Shipley 40" x 77" Heavy Duty Engine Lathe #6771 #2
SWING OVER BED: 40"
SWING OVER CROSS SLIDE: 30"
DISTANCE BETWEEN CENTERS: 77"
SPINDLE SPEEDS (25): 9 - 507 RPM
SPINDLE HOLE BORE: 2-1/2"
MAIN MOTOR: 30 HP
THEADING: INCH ONLY
ELECTRICS: 220/440V, 3-PHASE
WEIGHT: 20,000 LBS
DIMENSIONS (IN.): 192" x 72" x 72"
EQUIPPED WITH:
28" 4-JAW CHUCK
ANILAM WIZARD 550 DIGITAL READ OUT
4-WAY TOOL POST
COOLANT TANK AND PUMP - BUILT INTO LATHE
WORK LAMP
