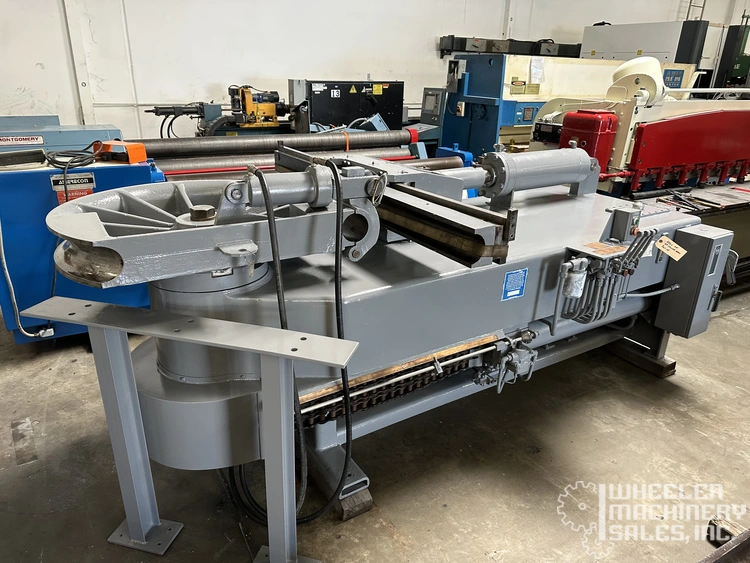

Coast Iron Machine Works 6RD Tube Pipe Bender 6" #6360 #1
Have one to sell?
$59,500.00 USD
ConditionUsed
1 available
Coast Iron 6RD Tube Pipe Bender, used, with 6" capacity for carbon (SCH 80) and stainless steel (SCH 40) pipes. Features 100-ton force, 180° bend angle, hydraulic power clamping, and extra dies. Weighs 22,000 lbs, motor 20 HP. Ready for demanding jobs.
Coast Iron Machine Works 6RD Tube Pipe Bender 6" #6360 #1
BENDING CAPACITY:
CARBON STEEL PIPE: 6" X SCH 80
STAINLESS STEEL PIPE: 6" X SCH 40
BENDING FORCE: 100 TONS
BENDING SPINDLE TORQUE: 157,000 FT Lbs.
BENDING FORCE: 100 Ton
MAXIMUM BEND RADIUS: 5XD ON MAX CAPACITY
MAXIMUM BEND ANGLE: 180° + 15° SPRINGBACK ALLOWANCE
CLEARANCE OVER MANDREL ROD: 12' 6"
HYDRAULIC POWER CLAMPING: 3-6" IPS
FLOOR SPACE EXCLUDING MANDREL BEAM ... 5' X 11'
MOTOR: 20 HP
WEIGHT (APPROX.): 22,000 Lbs.
EQUIPPED WITH:
EXTRA DIES & MANDRELS
HYDRAULIC MANDREL EXTRACTOR
HYD POWER RETURN PRESSURE DIE
MANUAL HAND LEVER CONTROL
MANUAL CLAMPING: SMALLER SIZES
**MAIN BENDING CYLINDER COMPLETELY REBUILT BY FLUIDTECH - POMONA, CA**
