RIVETT 957-1303-5C HIGH PRECISION SECOND OPERATION LATHE 9" x 20" #6282 #1
Have one to sell?
$2,950.00 USD
ConditionUsed
1 available

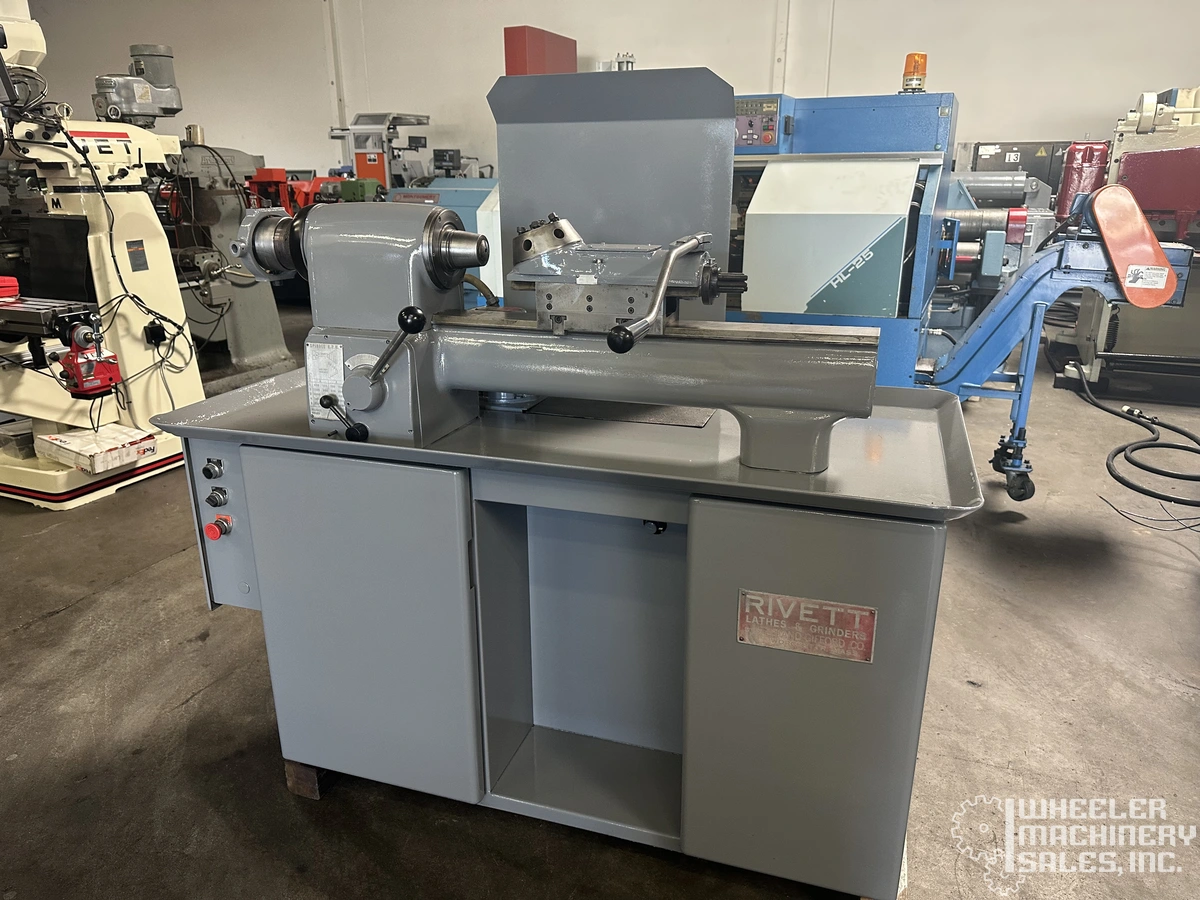

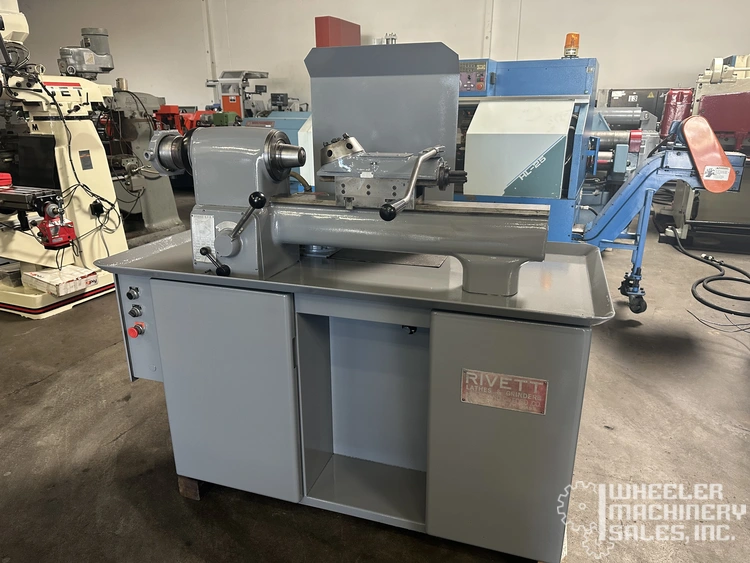

RIVETT 957-1303-5C second operation lathe, offering a 9" swing over bed and 20" between centers. Features bed turret, lever 5C collet closer, and coolant system. Dimensions 74"x35"x68", weighing 1,000 lbs. Ideal for precise machining tasks.
RIVETT 957-1303-5C HIGH PRECISION SECOND OPERATION LATHE 9" x 20" #6282 #1
Swing Over Bed: 9"
Distance Between Centers: 20"
Travel Double Tool Cross Slide: 3 7/8"
Travel of Turret Slide: 4"
Turret Hole Diameters: 3/4"
Spindle Speeds: 225 - 2,800 RPM
Spindle Capacity With 5C Collet: 1 1/16"
Motor: 1/2
Dimensions: 74" x 35" x 68"
Weight: 1,000 lbs.
Equipped With:
Bed Turret
Production Slide
Lever 5C Collet Closer
Coolant System
