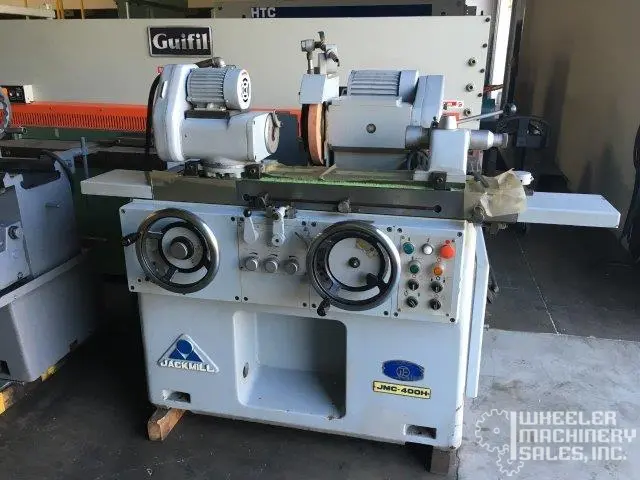

JACKMILL JMC-400H Cylindrical Grinder 10" x 15" #4565 #1
Have one to sell?
$29,500.00 USD
ConditionUsed
1 available
Used JACKMILL JMC-400H Cylindrical Grinder, 10" x 15", offers precision with a 15.75" center distance and 10.24" max grinding diameter. Features versatile workhead speeds, robust 5 HP wheel motor, and compact dimensions at 67"x70". Weighs 4000 lbs.
JACKMILL JMC-400H Cylindrical Grinder 10" x 15" #4565 #1
Distance Between Centers: 15.75"
Max. Grinding Diameter: 10.24"
Hydraulic Tank Capacity: 13.7 Gal.
Coolant Tank Capacity: 19 Gal.
Traverse Speed: 2.9-11 in/min.
Travel Per Handwheel Rotation: 0.51"
Swivel Angle Clockwise: 12/0 dg.
Swivel Angle Counter Clockwise: 7/12 dg.
Headstock Work Center: M.T. #4
Tailstock Work Center: M.T. #3
Workhead Swivel Angle Clockwise: 30 dg.
Workhead Swivel Angle Counter Clockwise: 90 dg.
Workhead Spindle Speed: 100,138,190,262,362,500 Rpm
Grinding Wheel Speed: 2085, 2495 Rpm
Infeed Per Graduation of Handwheel: .000196"
Infeed Per Revolution of Handwheel: .078 per rev.
Rapid In-Feed Stroke: 1.57 per min.
Wheel Drive Motor: 5 HP
Hydraulic Pump Motor: 1 HP
Dimensions: 67" x 70"
Weight: 4000 lbs.
