CADILLAC YAM 17" X 80" ENGINE LATHE #5852

CADILLAC YAM 17" X 80" ENGINE LATHE #5852

Pomona, CA

orCall 909-348-5610

Description

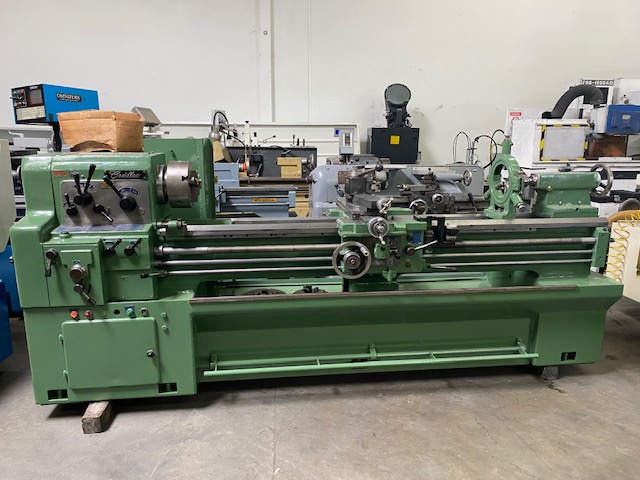

CADILLAC YAM 17" X 80" ENGINE LATHE

Aloris Tool Post, Trav-A-Dial, Steady Rest, Jacbobs Chuck, Royal Live Center, Bison 10" 3 Jaw, 12" 4 Jaw Chuck


Cadillac 17" x 80" Geared Head Engine Lathe


Manufacturer: Cadillac

Model: 1780

S/N: 10395


Specifications:

Swing over bed 17"

Swing over cross slide 10"

Swing over compound 4"

Distance from floor to center 43"

Distance between centers 80"

Spindle Mount A1-6

Spindle Bore 2"

Spindle Speeds (12) 32-1800 rpm

Inch Threads 4-80 TPI

Metric Threads .5-7

Cross Slide Travel 10"

Compound travel 5.75"

Tailstock quill travel 6"

Tailstock quill taper MT4

Tailstock quill diameter 2.5"

Width of bed face 13.75"

Input Voltage 220, 3PH

Dimensions 125" x 37" x 64"H

Machine weight (appx) 6500 lbs




Specifications

ManufacturerCADILLAC YAM
Model1780
ConditionUsed
Serial Number10395
Stock Number5852
