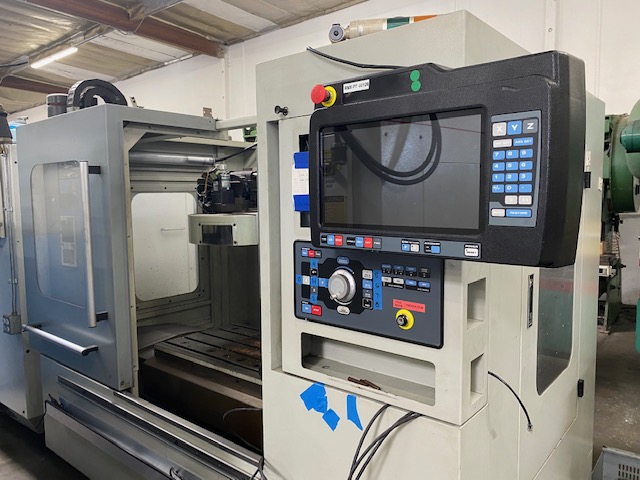

Southwestern Trak Ping Jeng MCV-M7 CNC VMC #5847

xyz  760/450/500  29.9"/17.7"/19.6"

spindle nose to table surface 100-610

spindle center to column surface 550

xyz way span 300/530/386

position repeatibility accuracy +- 0.0005

ball bar accuracy >0.01

spindle taper bt-40

royal 8000 rpm spindle

spindle motor 7.5 kw

xyz motor 1.5/3.5 kw

table size w x l 900 x 500

t-slots width x No x Pitch 18 x 5 x 100

table load 400 kg

xyz rapid feed rate m/min 36 /36/30

cutting feed rate m/min 1-12

min. input increment mm 0.001

max. tool dia./with adj. tool mm 150

max. tool weight 7 kg.

Max. tool lengthArm/Carousel type) mm 200

Tool selection Automatic random (Arm type)

Tool Changing time (T. to T.) sec 2.5 – 3.4

Spindle oil chiller l 18

Weight 3400 kg.

Floor Space m 2.28 x 2.26 x 2.35

Approx. Shipping Weight: 6,500 Lbs.

Approx. Shipping Dimensions: 84″ L x 68″ W x 78″ H
