2017 Hyundai WIA L300LA CNC Turning Center w/ Hyundai WIA Fanuc i-Series Controls #5845

2017 Hyundai WIA L300LA CNC Turning Center w/ Hyundai WIA Fanuc i-Series Controls #5845

Pomona, CA

orCall 909-348-5610

Description

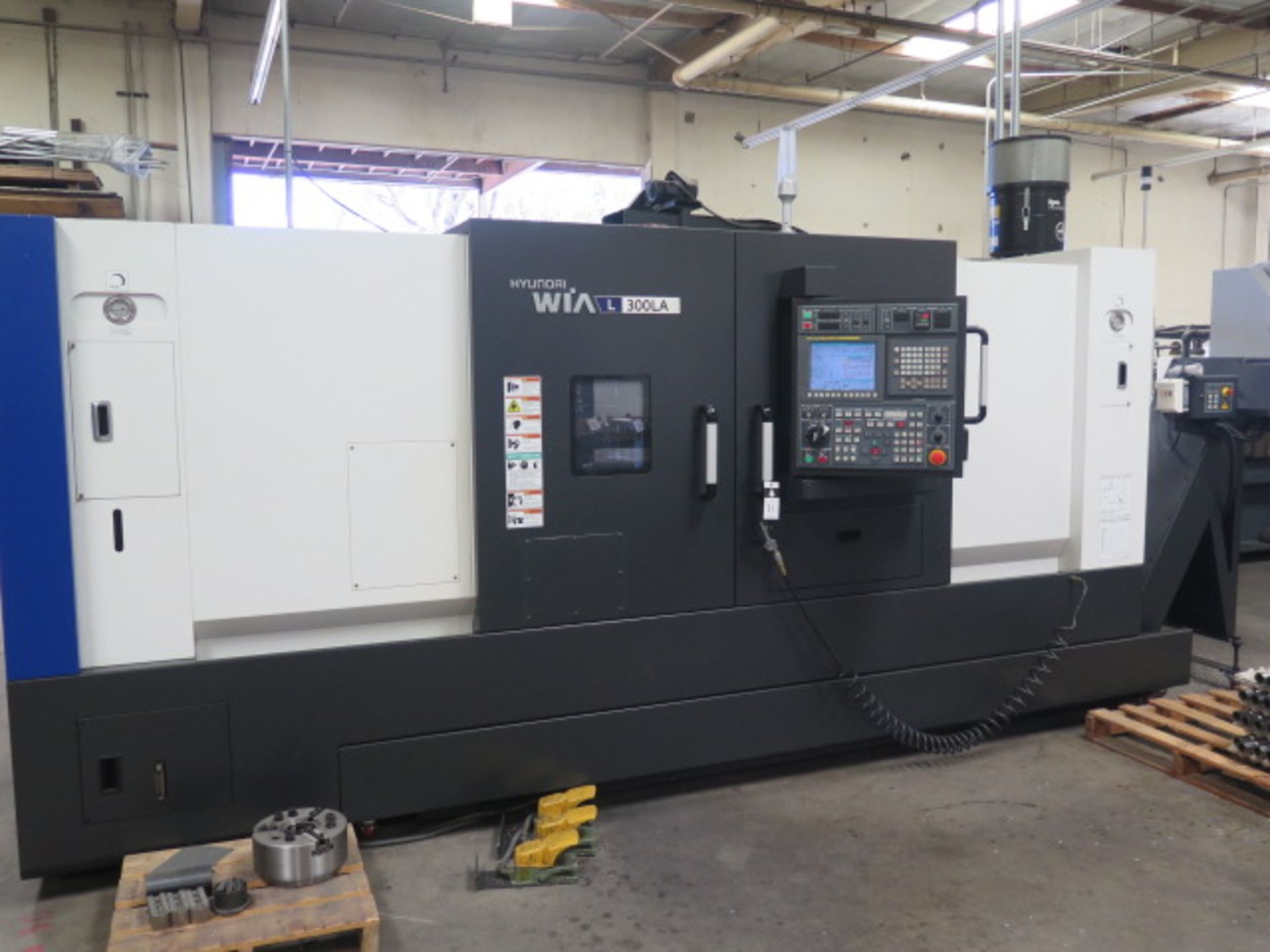

2017 Hyundai WIA L300LA CNC Turning Center s/n G3726-0108 w/ Hyundai WIA Fanuc i-Series Controls, Tool Presetter, 12-Station Turret, 3600 RPM, Hydraulic Tailstock, Royal Filtermist Mist Collector, Chip Conveyor, 10” 3-Jaw Power Chuck, Coolant, 1805 Run Hours


SPECIFICATIONS:


CHUCK SIZE (in) 10

BAR CAPACITY (in) 3

SWING OVER BED 29.5

MAX TURNING DIAMETER (in) 19.7

MAX TURNING LENGTH (in) 52

TAILSTOCK Yes

SPINDLE SPEED 3600

SPINDLE NOSE A2-8

SPINDLE MOTOR HP 30

Control CNC (Fanuc)


EQUIPPED WITH:


• Hyundai Wia Fanuc i control

• 3,600 RPM spindle

• 2 Step gear box embedded head stock

• 30HP (22kW) spindle motor

• Spindle orientation

• 87 PSI high pressure coolant system

• Double Pre-Tensioned Ball screws

• Fast 787 IPM (20m/min) X, and 945 IPM (24m/min) Z

• Manual Tool Setter

• 12 Station Turret

• Programmable tail stock (Tow-along type)

• MT #5 Live Center

• Part Catcher Preparation

• Right Side Hinge Type Chip Conveyor (47” discharge height)

• 3 color tower signal light

• LNS bar feeder interface

• 58.1 Gal (220 ℓ) Coolant Tank

• Standard Hyd. Unit - 35 Bar (508 psi) / 5.3 Gal(20 ℓ) Tank


Specifications

ManufacturerHyundai
ModelWIA L300LA
Year2017
ConditionUsed
Serial NumberG3726-0108
Stock Number5845
