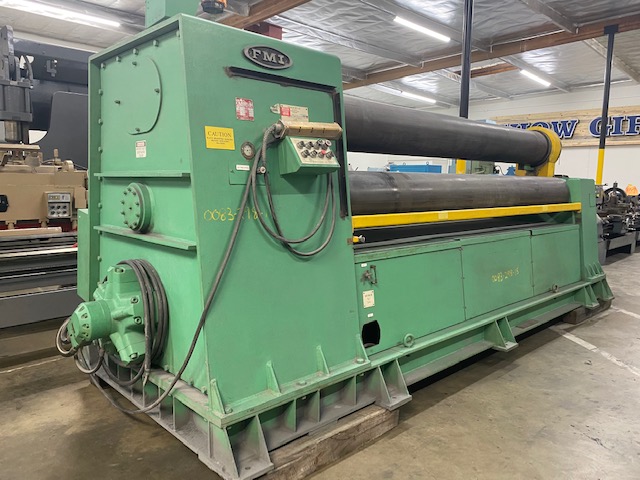

Franklin 3/4" x 12' Hydraulic Power Plate Roll Rolling Machine 14" Rolls #5835

Franklin Model 750 X 12 Hydraulic Pyramid Roll

Serial 903F1503

From composite making company that is closing this facility. Still under power and available for inspection, Los Angeles area.

Capacity: 3/4" mild steel

Length of Bend: 12'

Diameter of Bending Rolls: 14" (2) Lower rolls, independent adjustment

Diameter of Top Roll: 14"

Main Motor: 40 HP

Electrics: 440V, 3-Phase, 50.4 Amp, 60 Hz

Dimensions: 17' x 6' x 100" H

Weight: 52,000 lbs.

Equipped With:

Independent Digital Readouts per roll

Pendent Control and Machine Console

Hydraulic End Yoke
