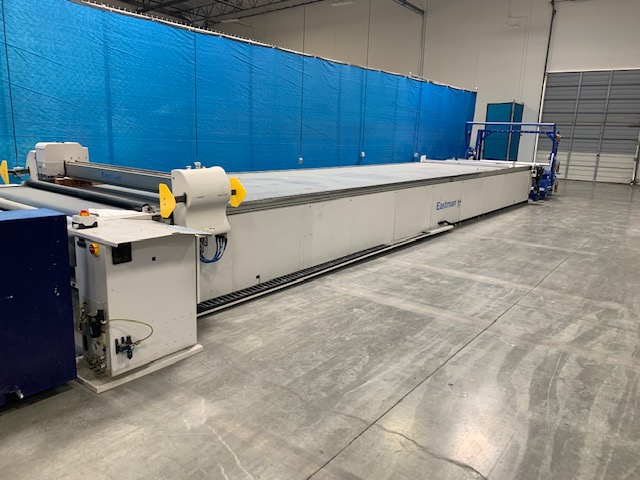

34' Long. Here is some information from Eastman.
From composite making company that is closing this facility. Still under power and available for inspection, Los Angeles area.
(Subject to Verification)
Drive SystemDual-X Axis, Y-Axis & Theta Axis. X & Y-Axis Rack & Pinion Drive, Brushless Servo Motors
Electric - Control Power/PC230V, 3 ph, 50/60 Hz, 5.4 kVA. Stand-alone step-down transformer required for other voltages.
Electric - Vacuum Blower208/230/380/460V, 3 ph, 50/60 Hz, 10 HP, VFD control
Power: Pneumatic75 – 90 psi at 15 SCFM (5.17 – 6.2 bars at 0.42 cmm)
Maximum Cutting Speed60 inches/second (152.4cm/second)
Maximum Conveyor Speed11 inches/second (28cm/second) System size dependent.
Maximum Acceleration1.3g
Maximum X/Y Speed60 inches/second
Compressed Air Consumption15 cfm
Sound Level<76 db(A)
Operating Temperature55 – 100°F (12 – 37°C)
Humidity20 – 80% (non-condensing)
DisclaimerAchievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
