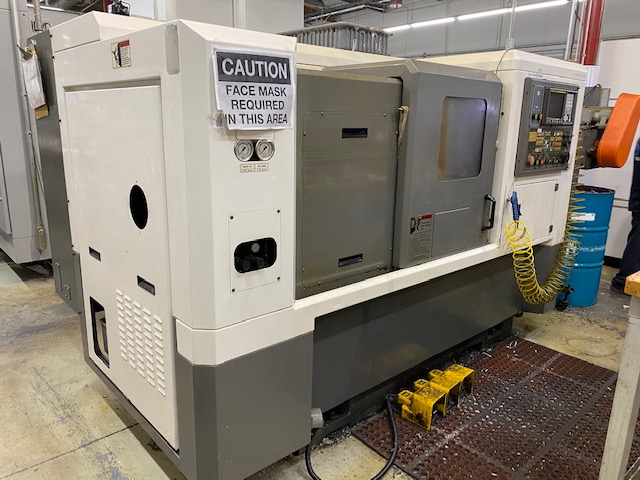

2005 Hwacheon Hi-Tech 200A CNC Turning Center Lathe #5746

Manufacturer: Hwacheon

Model: Hi-Tech 200A

Year: 2005

Specifications:

Control: Fanuc Oi-TB CNC Control

Max Swing Over Bed: 19.7"

Max Turning Diameter: 13.8"

Max Turning Length: 15.7"

Spindle Speeds: 1-5000 RPM

Spindle Drive: 20 HP

Spindle Nose: A2-6

Max Bar Capacity: 2"

Hole Thru Spindle: 3"

Turret Capacity: 12 Stations

Turret Travels (X,Z): 7.7" / 16.9"

Rapid Traverse Rate (X/Z): 1181 IPM

Tailstock: Hydraulic Tailstock

Tailstock Quill Diameter / Taper: 3.15"

Tailstock Quill Travel: 3.9"

Main Unit Dimensions (in inches): Length: 105.00" Width: 52.00" Height: 57.00"
