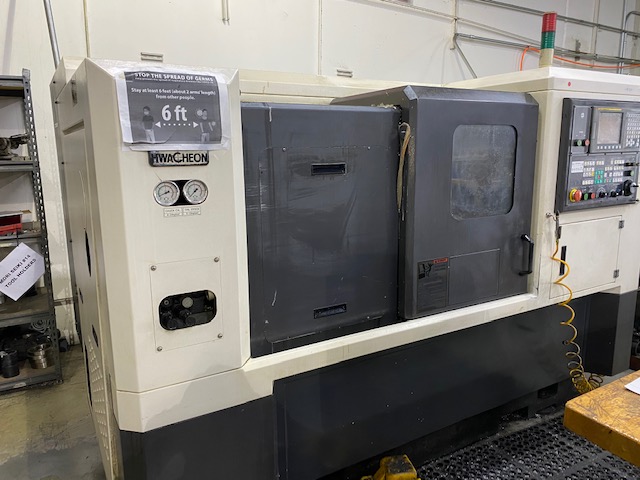

Manufacturer: Hwacheon
Model: Hi-Tech 200A
Year: 2007
Specifications:
Control: Fanuc Oi-TC CNC Control
Max Swing Over Bed: 19.7"
Max Turning Diameter: 13.8"
Max Turning Length: 15.7"
Spindle Speeds: 1-5000 RPM
Spindle Drive: 20 HP
Spindle Nose: A2-6
Max Bar Capacity: 2"
Hole Thru Spindle: 3"
Turret Capacity: 12 Stations
Turret Travels (X,Z): 7.7" / 16.9"
Rapid Traverse Rate (X/Z): 1181 IPM
Tailstock: Hydraulic Tailstock
Tailstock Quill Diameter / Taper: 3.15"
Tailstock Quill Travel: 3.9"
Main Unit Dimensions (in inches): Length: 105.00" Width: 52.00" Height: 57.00"
Weight: 9500 lbs.
