Haas VF-3 CNC Vertical Machining Center Gear Box CT40 Rigid Tap 1998 #5736

MACHINING CENTERS, VERT., N/C & CNC
Manufacturer:
HAAS
Model:
VF-3
Year:
1998
Stock #:
5806

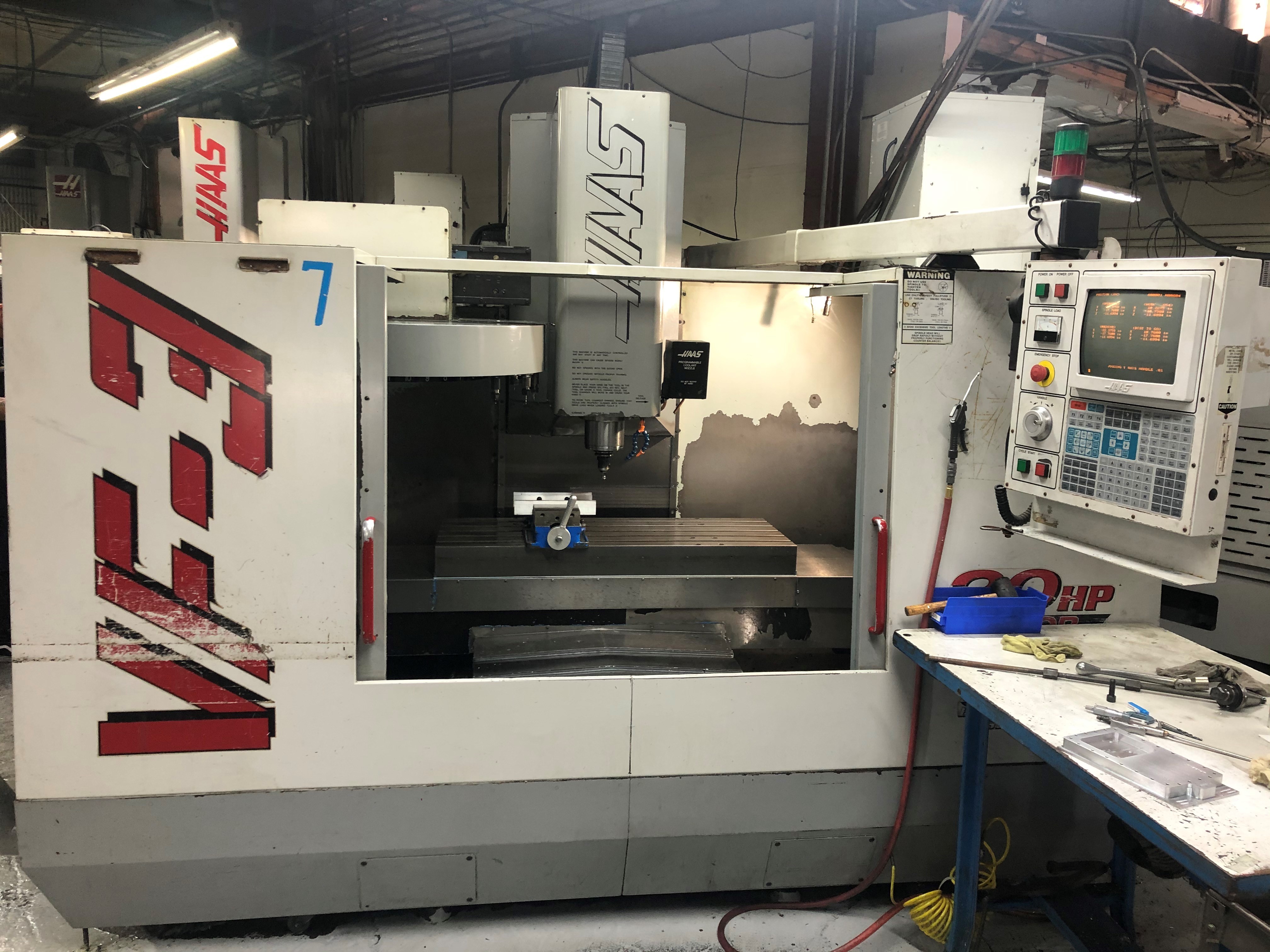

Haas VF-3 CNC Vertical Machining Center, 1998, equipped with 2-speed gearbox, brushless servos, chip auger, rigid tap, programmable coolant nozzle, 4th axis pre-wire, 32-position tool changer. Table size 48" x 18", spindle speed 7,500 RPM, 20 HP.

Make: Haas

Model: VF-3

Year: 1998

Specifications:

Control .................................................................................................................. Haas

Table Size ....................................................................................................... 48" x 18"

Max Table Load ............................................................................................... 3,500 lbs

X-Axis Travel ........................................................................................................... 40"

Y-Axis Travel ........................................................................................................... 20"

Z-Axis Travel ............................................................................................................ 25"

Spindle Taper ........................................................................................................ CT 40

Spindle Motor......... .............................................................................................. 20 HP

Spindle Speed .............................................................................................. 7,500 RPM

Tool Changer ........................................................................................... 32 Position

Approx Dimensions: 118″ x 98″ x 100″ High

Machine Weight ............................................................................................. 12,500 lbs

Equipped With:

2-Speed Gearbox

Brushless Servos

Chip Auger

Rigid Tap

Programmable Coolant Nozzle

4th Axis Pre-Wire

3.5” Floppy Drive

Quick Code Programming

16 MB Memory

1000 Blocks/Sec.

32 Pocket Tool Changer

Macro Code

Coord. Scale
