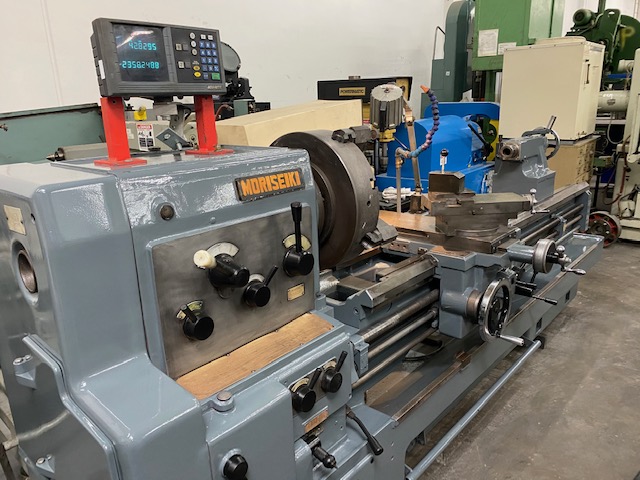

MORI SEIKI MODEL MH200G GAP BED ENGINE LATHE 24"/33" X 80 cc #5729

Pomona, CA

orCall 909-348-5610

Description

24"/33" X 80" MORI SEIKI MODEL MH2000G GAP BED ENGINE LATHE



SWING OVER BED --------------------------------- 24"

SWING OVER CROSS SLIDE ---------------------- 16"

SWING OVER REMOVABLE BLOCK GAP ---------- 33"

LENGTH OF GAP ----------------------------------- 7-1/2"

DISTANCE BETWEEN CENTERS ------------------- 80"

WIDTH OF HARDENED BED ----------------------- 16-1/2"

SPINDLE BORE ------------------------------------- 3"

SPINDLE NOSE ------------------------------------- D1-8"

SPINDLE SPEEDS ------ ( 12 ) -------------------- 27 TO 1205 RPM

32 THREAD CHANGES - ( INCH ) ----------------- 4 TO 80 TPI

32 THREAD CHANGES - ( METRIC ) -------------- .5 TO 7 MM PITCH

MAIN DRIVE MOTOR ------------------------------ 10 HP A.C.

APPROXIMATE MACHINE WEIGHT ---------------- 7,400 LBS

APPROXIMATE MACHINE DIMENSIONS ----------- 140"(LR) X 44"(FB)

Specifications

ManufacturerMORI SEIKI
ModelMH2000G
ConditionUsed
Serial Number3545
Stock Number5729
