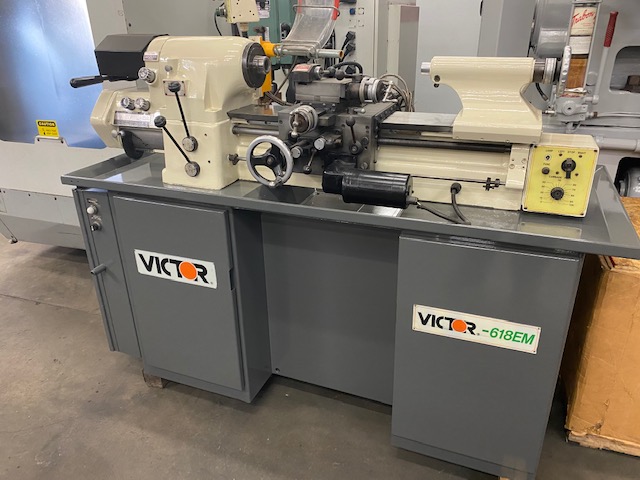

VICTOR MODEL 618EM TOOLROOM LATHE #5728

Pomona, CA

orCall 909-348-5610

Description

VICTOR PRECISION TOOL ROOM LATHE

MODEL: 618EM, S/N: 8605179


SPECIFICATIONS:

CAPACITY

W/ROUND TYPE 5C COLLETS ............. 1-1/16"

W/STEP CHUCKS ....................... 1-1/16" TO 6"

W/JAW CHUCKS ........................ 5"

W/EXPANDING COLLETS ................. 3"

VARIABLE SPINDLE SPEEDS ............... 0 - 4,000 R.P.M.

HOLE THROUGH SPINDLE .................. 1-1/4"

SWING OVER BED ........................ 11"

SWING OVER CARRIAGE ................... 9"

SWING OVER CROSS SLIDE ................ 6"

DISTANCE BETWEEN CENTERS .............. 18"

COMPOUND SLIDE TRAVEL ................. 3"

CARRIAGE POWER FEED RANGE ............. 5/16 - 7 IPM

CROSS SLIDE POWER FEED RANGE .......... 3/16 - 4 IPM

TAILSTOCK SPINDLE DIAMETER ............ 1-3/8"

TAILSTOCK SPINDLE TAPER ............... #2 MT

INCH THREADING RANGE IN GEARBOX ....... (36) 11 - 108 T.P.I.

METRIC THREADING RANGE IN GEARBOX ..... (36) 0.275 - 2.7 MM

APPROXIMATE WEIGHT .................... 2,000 LBS.


EQUIPPED WITH:

2 Axis Digital Readout

Specifications

ManufacturerVICTOR
Model618EM
ConditionUsed
Serial Number8605179
Stock Number5728
