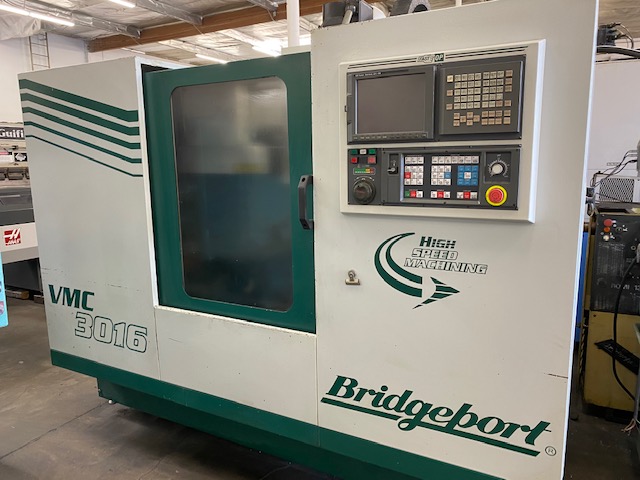

BRIDGEPORT VMC 3016 CNC VERTICAL MACHINING CENTER

BRIDGEPORT VMC 3016 CNC VERTICAL MACHINING CENTER

Pomona, CA

orCall 909-348-5610

Description

BRIDGEPORT VMC 3016 CNC VERTICAL MACHINING CENTER

 Model VMC3016

S/N 21i-0027



Equipped With:

Fanuc Series 21i-M control, RS-232 Port, Multiple Part Program

Storage, 22 Position Automatic tool changer

BT40 Taper Spindle, Coolant System.


Catalogue Specifications:

Table Size............................................. 36" x 14"

X-Axis Travel.......................................... 30"

Y- Axis Travel......................................... 16"

Z- Axis Travel......................................... 20"

Traverse X & Y......................................... 826"/min

Traverse Z............................................. 710"/min

Axis Thrust X & Y...................................... 1150 lbs

X & Y Peak Thrust...................................... 3450 lbs

Axis Thrust Z.......................................... 1700 lbs

Z Peak Thrust.......................................... 5100 lbs

Spindle RPM............................................ 7500 RPM

Spindle HP............................................. 12 Peak

Speed Option........................................... 2-spd trans

Table Load............................................. 2000 lbs

Approximate Machine Dimensions......................... 110" x 98"

Approximate Machine Height............................. 100"

Approximate Machine Weight ............................ 7,200 lbs

Specifications

ManufacturerBRIDGEPORT
ModelVMC 3016
ConditionUsed
Serial Number21i-0027
Stock Number5725
