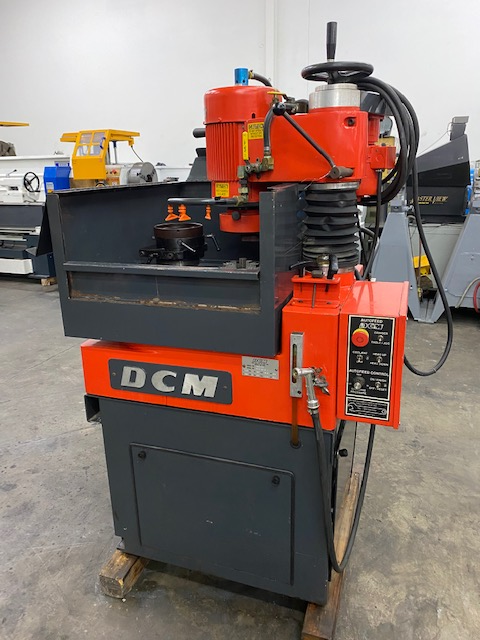

DCM MDL. PDG 5-3AF 18" ROTARY GRINDER PUNCH AND DIE GRINDER #5710 #1

GRINDERS, SURFACE, ROTARY TYPE
Manufacturer:
DCM
Model:
PDG 5-3AF
Stock #:
5710
For sale: DCM Model PDG 5-3AF Rotary Surface Grinder. Features a 18" T-slot rotary table, 5 HP spindle motor with 3,600 RPM, and adjustable autofeed rate. Includes 6-1/2" 3-jaw chuck, permanent magnet chuck, and 10" max grind wheel distance. Condition: Used.

DCM MDL. PDG 5-3AF 18" ROTARY GRINDER PUNCH AND DIE GRINDER #5710 #1

Model: PDG 5-3AF

SPECIFICATIONS:

T-Slot Rotary Table:

- Diameter...............................................................18"

- T-Slots..................................................................6

- Speed...............................................................20 RPM

- Motor...............................................................1/2 HP

- Distance from Top to Grind Wheel - Maximum.............................10"

Spindle:

- Speed............................................................3,600 RPM

- Motor.................................................................5 HP

- Autofeed Rate - Infinitely Variable.....................0.0005 - 0.020 IPM

- Manual Handwheel Graduations........................................0.001"

Grinding Wheels:

- Cup Wheel Type.....................................................6 or 11

- Size.................................................................6" OD

- Spindle Hole........................................................1-1/4"

Workholding:

- Tilt Angle.....................................................0 - 10 Deg.

- 3-Jaw Chuck.........................................................6-1/2"

- Permanent Magnet Chuck.............................................7" x 4"

Dimensions - Actual.......................................42" x 36" x 64"(H)

Weight - Catalog..................................................1,500 Lbs.
