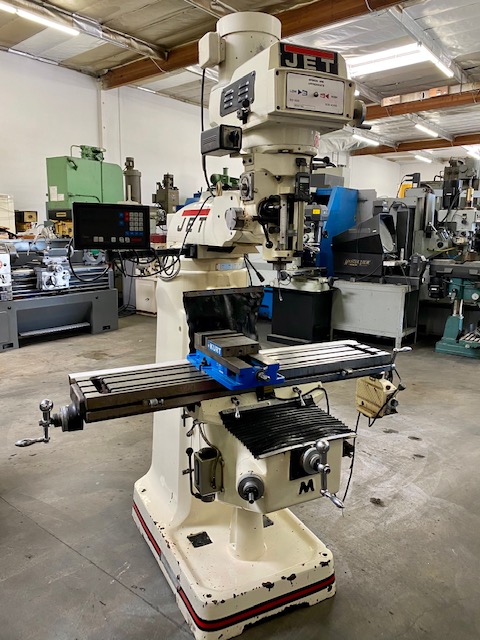

Jet 9" x 49" Vertical Milling Machine Model JTM-4VS Digital Read Out , Kurt Vise, Collets #5706

Jet 9" x 49" Vertical Milling Machine Model JTM-4VS Digital Read Out , Kurt Vise, Collets #5706

Pomona, CA

orCall 909-348-5610

Description

Make: Jet

Model: JTM-4VS Vertical Mill


Specifications:


  • Style (Type)
  • Variable Speed R8
  • Spindle Taper (In. x TPI)
  • R-8
  • Table Size (L x W) (In.)
  • 9 x 49
  • Quill Diameter (In.)
  • 3-3/8
  • Number of Spindle Speeds
  • Variable
  • Range of Spindle Speeds (RPM)
  • 60 - 4,200
  • Quill Down Feed Rates (IPR)
  • .0015 - .003 - .006
  • Spindle Travel (In.)
  • 5
  • Head Movement (Deg.)
  • 90° R & L, 45° F & B
  • Max Distance Spindle to Table (In.)
  • 17-1/2
  • Distance Spindle to Column (Max.) (In.)
  • 19
  • Distance Spindle to Column (Min.) (In.)
  • 4-1/2
  • Collet Capacity
  • 1/8 - 7/8
  • Table Longitudinal Travel (In.)
  • 34
  • Table Longitudinal Travel With Powerfeed (In.)
  • 28-3/4
  • Table Cross Travel (In.)
  • 12
  • T-Slots Number and Size (In.)
  • 3 and 5/8
  • T-Slot Centers (In.)
  • 2-1/2
  • Work Table Weight Capacity (Lbs.)
  • 660
  • Travel of Knee (In.)
  • 14-1/2
  • Travel of Ram (In.)
  • 13-3/8
  • Motor (HP)
  • 3 HP, 230/460V, 3Ph
  • Prewired (V.)
  • Overall Dimensions (L x W x H) (In.) 66" x 63" x 85"
  • Weight: 2420 lbs.


Equipped with:

6" Kurt Vise

Way Covers

Collet Set

One Shot Lube

Newall Digital Readout

Variable Speed Head

Mitutoyo SD Quill Indicator

X Axis Power Feed

Specifications

ManufacturerJet
ModelJTM-4VS
ConditionUsed
Serial Number0011687
Stock Number5706
