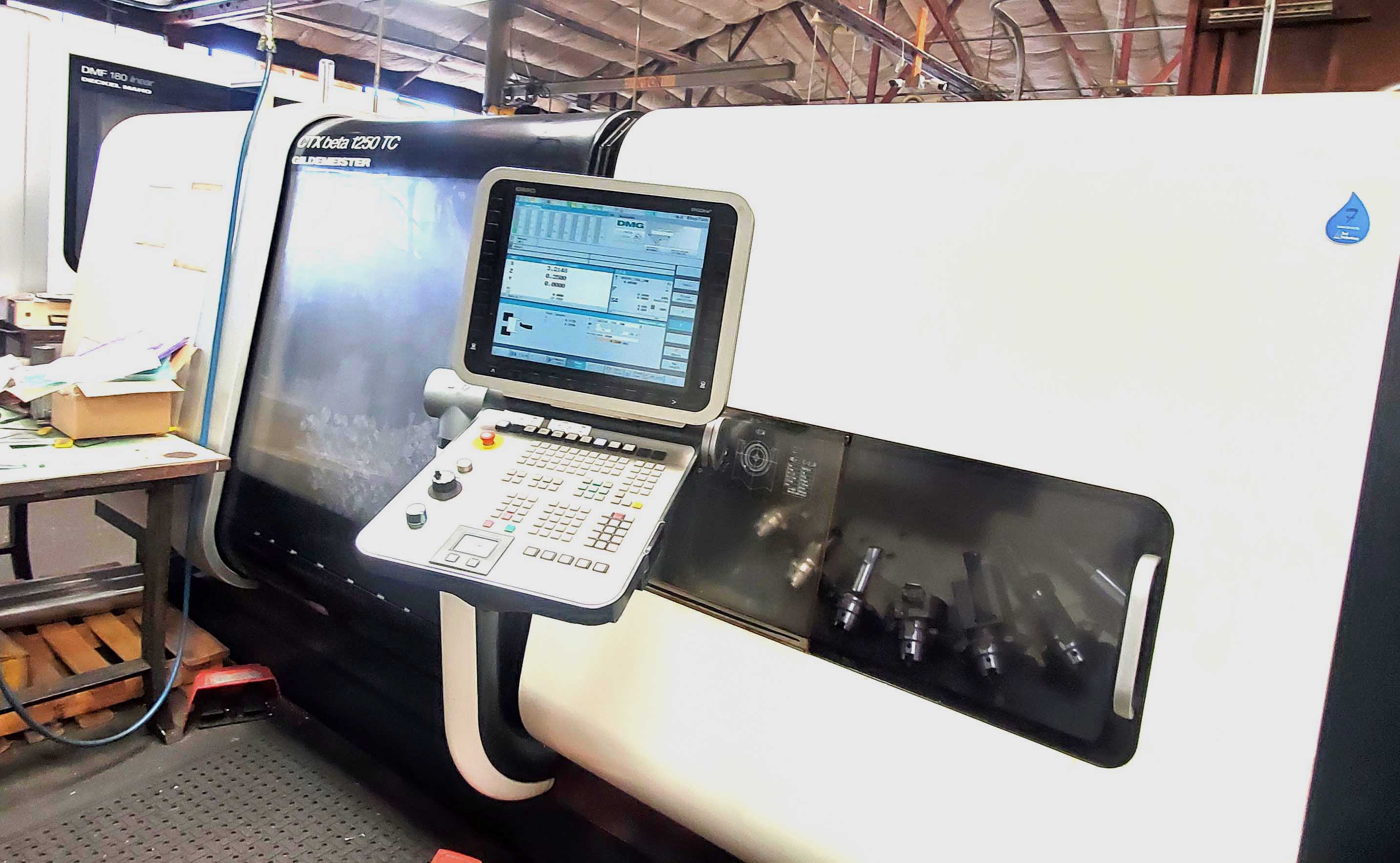

2009 DMG GILDEMEISTER CTX BETA 1250 TC CNC TURNING CENTER AND MILLING CENTER #5684

Make: DMG

Model: CTX beta 1250 TC

Year: 2009

Video Available

LIVE TOOLING / MILLING

C-Axis: Equipped With

Y-Axis: Equipped With

Live Tooling / Milling: Equipped With

B-Axis: Equipped With

SPECIFICATIONS

X-Travel: 17"

Z-Travel: 47"

Max Turning / Cutting Length: 47"

Max Cutting / Turning Diameter: 20"

SPINDLE

Bar Capacity: 2.55"

Chuck Size: 13"

Chuck Description: SMW Autoblok With Quick Change Jaw System

Spindle Bore: 3"

Spindle Speed: 5,000 RPM

Spindle Motor: 29.5 HP

SECOND SPINDLE

Sub-Spindle: Equipped With

Second Chuck Size: 10"

Second Spindle Speed: 4000 RPM

TURRET

Tool Positions: 24

Turret Max RPM: 12,000 RPM

CONTROL

Control Make/Model: Siemens 840D D ERGOline

Control Options: Conversational Programming

Additional Control Options: 19” 3D Graphic Screen

2 Gig Memory

Shop Turn Conversational Software

OPTIONS

Machine Options: Barfeed Interface;Parts Catcher

Additional Machine Specs: HSK-A 63 Spindle Taper

B-Axis

Hollow Clamping

24 ATC Tool Changer

Y Axis travel +/- 3.93”

Longitudinal Stroke : 47.2" Transverse Stroke : 17.71"

Coolant System Pressure

Coolant Spray Gun

Parts Conveyor

Eccentric Turning & Milling Operation

Counter Spindle ISM52 C-Axis

Tailstock Function for Counter Spindle

Main Spindle Reduction Tube

Coolant Types: High Pressure Coolant

Chip Removal: Chip Conveyor
