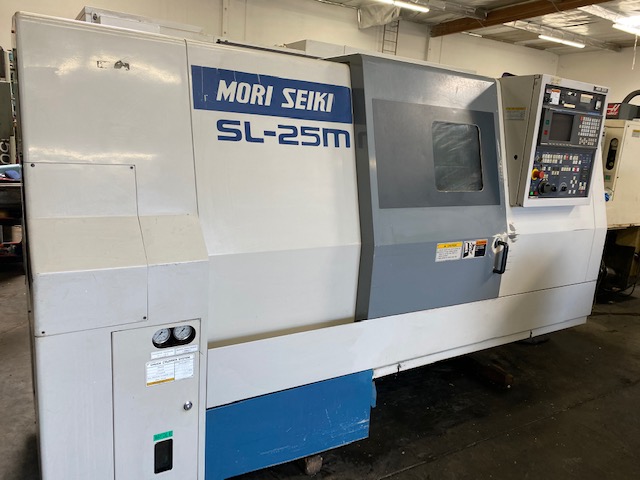

MORI SEIKI SL-25MC CNC TURNING CENTER LIVE TOOLING #5660

Make: Mori Seiki

Model #: SL-25MC

Serial #: 1500

SPECIFICATIONS:

Max Turning Diameter: 13.4″

Max Turning Length: 20.9″

Max Bar Capacity: 2.5″

Swing Over Cross Slide: 13.8″

Swing Over Bed: 20.5″

Distance Between Centers: 24.6″

X Axis Travel: 11.3″

Z Axis Travel: 43.33″

Rapid Traverse X Axis: 790 IPM

Rapid Traverse Z Axis: 945 IPM

Spindle Nose: A2-6

Spindle Bore: 3.1″

Spindle Speed: 35 – 3500 RPM

Spindle Motor: 20 HP

Live Tooling Motor: 5/3 HP

Turret Capacity: 12 Stations

Turret Index Time: 1 Second

Tailstock Quill Dia.: 4.33″

Tailstock Quill Stroke: 3.93″

Tailstock Taper: MT-5

General:

Power Requirement: 32kva

Overall Dimensions: 110″ x 68″ x 80″ High

Weight : 13000 lbs Approx.
