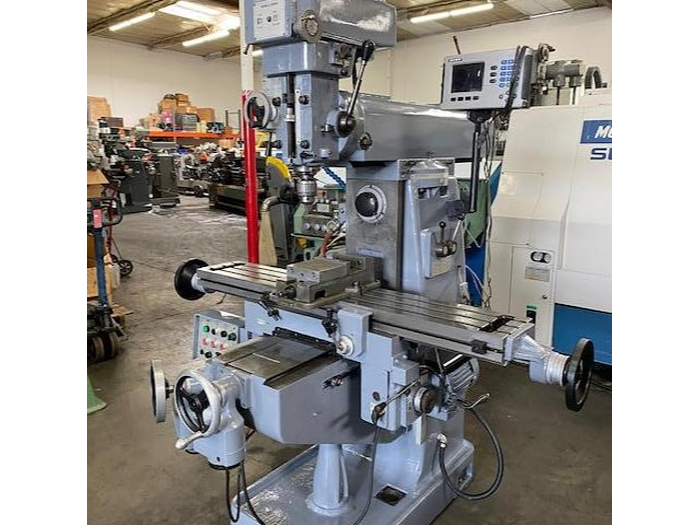

SHARP MODEL VH2 VERTICAL / HORIZONTAL MILLING MACHINE #5656

SHARP MODEL VH2 VERTICAL / HORIZONTAL MILLING MACHINE #5656

Pomona, CA

orCall 909-348-5610

Description


Make:Sharp

Model:VH2



SPECIFICATIONS



TABLE

WORKING SURFACE: 9” X 54”

LONGITUDINAL TRAVEL: 30”

CROSS TRAVEL: 16.5”

VERTICAL TRAVEL: 17”

LONGITUDINAL FEEDS: 7/8 – 27”

LONGITUDINAL RAPID TRAVERSE: 82.5”


MOTORS

VERTICAL SPINDLE: 3 HP

HORIZONTAL SPINDLE: 2 HP

TABLE LONGITUDINAL FEED: 4 HP

COOLANT PUMP: 1/8 HP


VERTICAL SPINDLE

SPINDLE NOSE: 40 NST

SPINDLE SPEEDS: 60 – 4,500 RPM

QUILL TRAVEL: 5”

VERTICAL FEEDS: .04, .08, .16, .0018, .003, .006 IPR

HEAD SWIVEL: 90 DEGREES

OVERARM TRAVEL: 18.5”

OVERARM SWIVEL: 360 DEGREES

SPINDLE NOSE TO TABLE: 5-7/16 – 23”

SPINDLE NOSE TO TABLE: 8 – 27”


HORIZONTAL SPINDLE

SPINDLE NOSE: 40 NST

SPINDLE SPEEDS (12 STEPS): 80,120, 230, 380, 700, 1,350 RPM

SPINDLE CENTERLINE TO TABLE SURFACE: 0 – 17.5”

SPINDLE CENTERLINE TO OVERARM: 5.5”

SPINDLE NOSE TO COLUMN SURFACE: 15/16”


GENERAL

DIMENSIONS: 4’ LR X 4” FB X 8’ H

WEIGHT: 3,250 LBS




Specifications

ManufacturerSHARP
ModelVH2
ConditionUsed
Serial Number77020268
Stock Number5656
