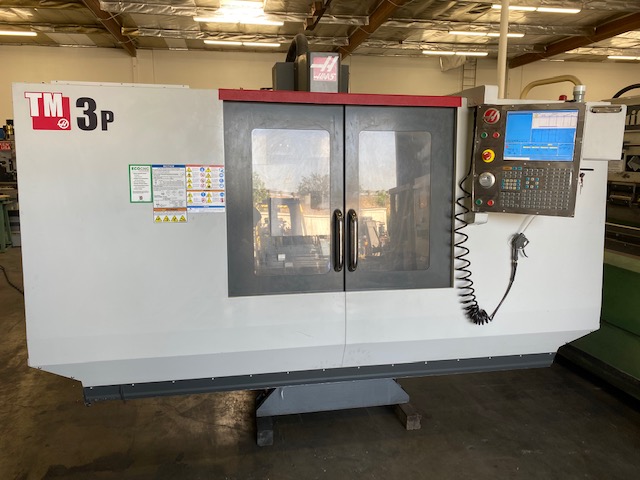

Make: Haas
Model: TM3P
Year: 2011
SPECIFICATIONS:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 16"
Rapid Rate X Axis: 400 IPM
Rapid Rate Y Axis: 400 IPM
Rapid Rate Z Axis: 400 IPM
Table Size: 57.8" x 14.5"
Max Table Load: 1,000 LBS
Spindle Motor: 7.5 HP
Spindle Speed: 6,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Cutting 400 ipm
Max Torque 33 ft-lbf
Drive System Direct Speed, Belt Drive
Max Thrust X 2000 lbf
Max Thrust Y 2000 lbf
Max Thrust Z 2000 lbf
Max Tool Diameter (3.5"
Max Tool Weight 12 lbs
Tool-to-Tool (avg) 5.7 s
Chip-to-Chip (avg) 6.5 s
Dimensions: 130" x 88" x 98"
Weight: 6,200 LBS
