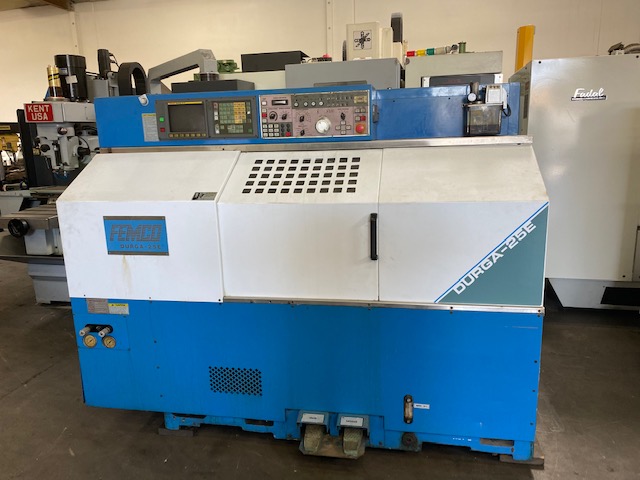

FEMCO DURGA 25E CNC TURNING CENTER LATHE

Make: Femco

Model No.: DURGA 25E

Serial # L5E389

Fanuc 0T CNC Control

8″ 3 Jaw Hydraulic Chuck

A2-6 Spindle

Tool Presetter

Coolant System

RS-232 port

23 Station Automatic Double Disc Turret

Foot Switch

Chip Conveyor

Femco Durga 25E Specifications:

Capacity:

Max Turning Diameter: 9.84″

Max Turning Length: 23.62″

Swing Over Bed: 17.75″

Distance Between Centers: 24.2″

Max Bar Capacity: 2.0″

X Axis Travel: 5.4″

Z Axis Travel: 23.62″

Rapid Traverse X Axis: 472 IPM

Rapid Traverse Z Axis: 630 IPM

Spindle Nose: A2-6

Spindle Bore: 2.4″

Spindle Speed: 40 – 4800 RPM

Spindle Motor: 20 HP

Turret Capacity: 23 Stations

Turret Index Time: 1 Second

Tailstock Taper: MT4

Tailstock Quill Dia.: 3.1″

Tailstock Quill Travel: 4.0″

General:

Power: 21 kva, 220v / 3-Phase

Overall Dimensions: 120″ x 80″ x 82″ High

Weight: 7000 lbs
