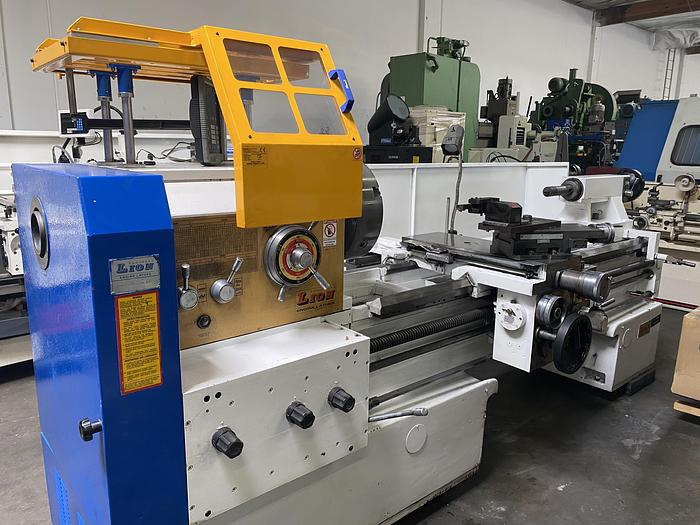

LION 25" / 33" X 70" GAP BED ENGINE LATHE MODEL C10MS 25MS

LION 25" / 33" X 70" GAP BED ENGINE LATHE MODEL C10MS 25MS

Pomona, CA

orCall 909-348-5610

Description

Lion 25-MS Removable Gap Bed Lathe 25" Model 25-MS Serial # 1546 25" Swing (33" in gap) 70"' Between centers 17" Swing over cross slide D1-11 Camlock chuck mount 15" Bison 3 Jaw chuck w/ reversible jaws 18 Spindle speeds from 10 to 1,500 rpm 4" Thru hole EQUIPPED WITH: Newall C80 Digital Readout Taper attachment In/mm Threading In/mm Hand dials Tool post 17.5hp 220/440v 3ph Overall Dim. 17' 2"L x 4' 4"W x 4' 9"H Est. Wt. 12,000 lbs

Specifications

ManufacturerLION
ModelC10MS 25MS
ConditionUsed
Serial Number1546
Stock Number5611
