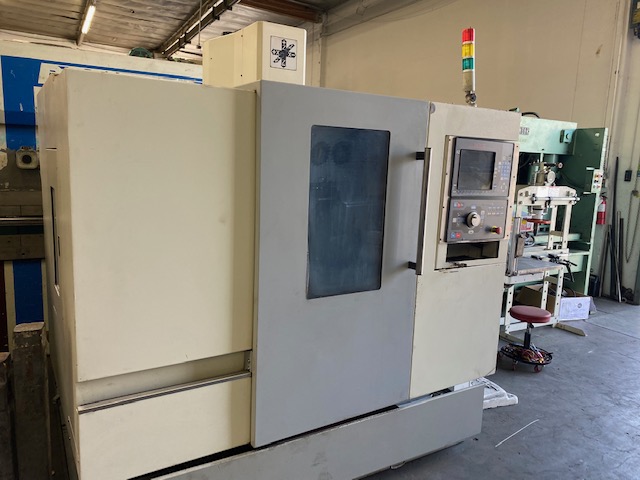

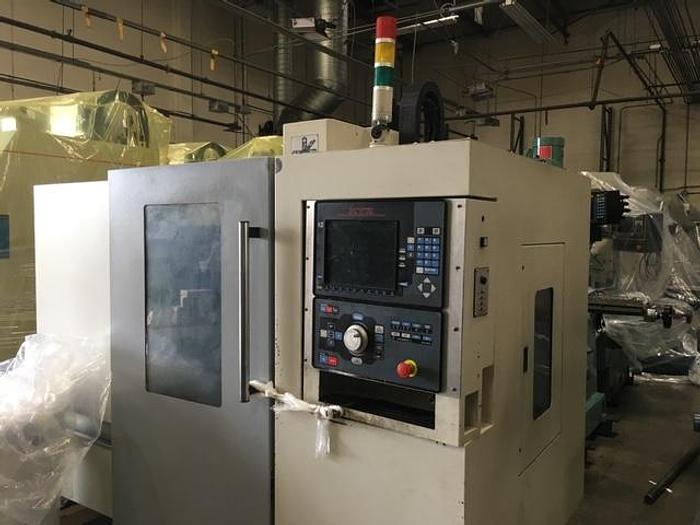

SOUTHWESTERN TRAK XYZ ( LPM ) 710 CNC VERTICAL MACHINING CENTER

Pomona, CA

orCall 909-348-5610

Description

X Axis Travel: 27.95"

Y Axis Travel: 17.71"

Z Axis Travel: 19.68"

Table Size: 29.92" x 16.92"

Spindle Center To Column: 19.37"

Spindle To Table: 3.93"-24.01"

Column front to table center: 19.37"

Rapid Fee XYZ axis: 20 m/min Box Way

Cutting Feed Rates: 1-20000 mm/min

Max. Table Load: 1102 lbs.

T Slot Size: 16mm

T slot number and pitch: 4 @ 100 mm

Spindle Speed: 5-8000 rpm

Spindle Motor: 20 HP

Spindle Taper: BT40

Tool Magazine Capacity: 24 Station

Tool Change Time Tool to Tool: 2.5 sec

Max. Tool Diameter: 3.14"

Max. Tool Weight: 15.43 lbs.

Coolant Capacity: 160 L

Ball Screw Size: (grace C3): 32mm P8

Ac Servo Motor Size: X and Y 8 Nm Z 12 Nm

Machine Weight: 8900 lbs.

Footprint: 88.58" x 87.40" x 100.39" H


Specifications

ManufacturerSOUTHWESTERN TRAK XYZ ( LPM ) 710 CNC VERTICAL MACHINING CENTER
ConditionUsed
Stock Number5602
