20"/27" x 80"cc, STAN CANADA, 2015, 10" CHUCK, 10 HP Our stock number: 5552

20"/27" x 80"cc, STAN CANADA, 2015, 10" CHUCK, 10 HP Our stock number: 5552

Pomona, CA

orCall 909-348-5610

Description

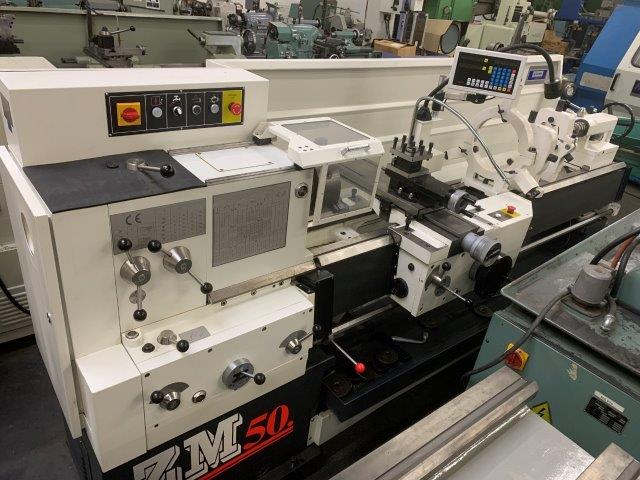

Manufacturer: Stan Canada Stanko Model: ZM50 20"/27.5" x 80" GAP BED ENGINE LATHE Year: 2015 SPECIFICATIONS: Swing Over Bed: 20" Swing Over Cross Slide: 10.625" Swing Over Gap: 27.5" Max. Turning Length: 80" Width of Bed: 13.4" Width of Gap: 9" Chuck Size: 10" Spindle Speed Range: 22-2000 Rpm Spindle Bore: 1.96" Spindle Internal Taper: 6 MT Toolpost Travel: 5.5" Cross Slide Travel: 11.8" Quill Stroke: 7" Quill Diameter: 2 3/4" Quill Nose: 5 Morse Taper No. of Longitudinal and Cross Feeds: 38 Rapid Traverse X/Z Axes: 0.7/5 m/min Thread Pitch: 29 Metric 0.5-40mm 35 Whitworth Tpi 1-80 26 Modules 31 Diametral Main Motor: 10 HP Coolant Motor: 0.125 kW Rapid Traverse Motor: 0.55kW Dimensions: 11' x 5' x 5'5" H Weight: 5500 lbs. EQUIPPED WITH: Digital Readout 10" Chuck 2 Steady Rests Follow Rest

Specifications

Manufacturer20"/27" x 80"cc, STAN CANADA, 2015, 10" CHUCK, 10 HP Our stock number: 5552
ConditionUsed
Serial Number1408002
Stock Number5552
