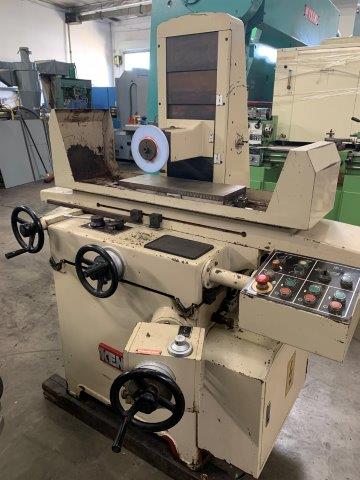

8" x 18", KENT KGS-250AH, HYDRAULIC, 16 TO 67 FPM, 16" SPINDLE CENTER TO TABLE Our stock number: 5533

Manufacturer: Kent
Model: KGS-250AH Hydraulic Surface Grinder

Specifications:

Max Grinding Surface...................10" x 20"
Distance Spindle Center To Table.......16"
Hydraulic Variable Table Speed.........16 - 67 FPM
Auto Crossfeed Increment...............0.04" - 0.3"
Crossfeed Handwheel Per Graduation.....0.001"
Per Revolution.........................0.2"
Vernier Scale..........................0.0001"
Vertical Downfeed On Wheel.............1 Rev/0.1"
Spindle Motor..........................1-1/2 HP
Grinding Wheel Size....................8" x 1/2" x 1-1/4"
Dimensions.............................71" x 55" x 70", 2900 lbs

Equipped With:

8" x 18" Permanent Magenetic Chuck
Hydraulic Table Traverse
Power Crossfeed
Coolant System
