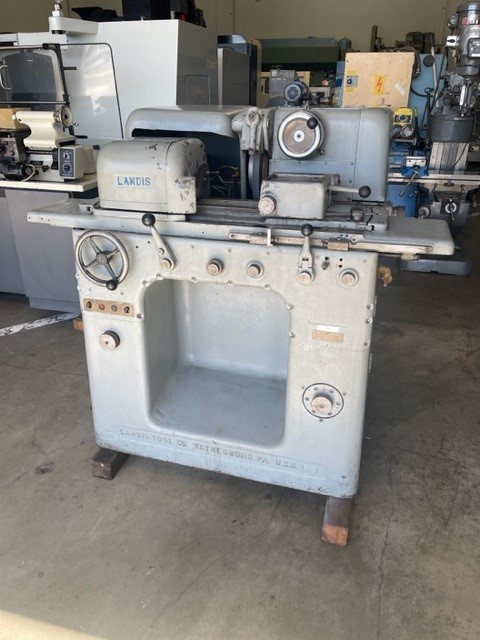

Landis 4-H Plain OD Grinder 4" x 12" #6918 #2

Landis 4-H Plain OD Grinder 4" x 12" #6918 #2

SPECIFICATIONS:

MAXIMUM WORK SWING: 4- 31/32"

DISTANCE BETWEEN CENTERS: 12"

HYD. TABLE, INFINITELY VARIABLE: 6" TO 120" IPM

TABLE SWIVEL, GRADUATED TO GRIND TAPER,

- INCLUDED ANGLE: 3" PER FT.

GRINDING WHEEL SIZE: 16" DIA.

MAXIMUM WHEEL WIDTH: 3"

GRINDING WHEEL SPEEDS (2): 1500 & 1800 RPM

TAILSTOCK & WORKHEAD SPINDLE TAPER: #6 JARNO

WORKHEAD SPINDLE SPEEDS: 200 TO 900 RPM

APPROXIMATE MACHINE WEIGHT: 4,400 LBS.

HYDRAULIC OPERATION FEATURING:

RAPID WHEELHEAD ADVANCE & RETRACTION

LANDIS "MICROSPHERIC" WHEELHEAD BEARINGS

3 H.P./3/60/220-440 VOLT WHEELHEAD MOTOR
