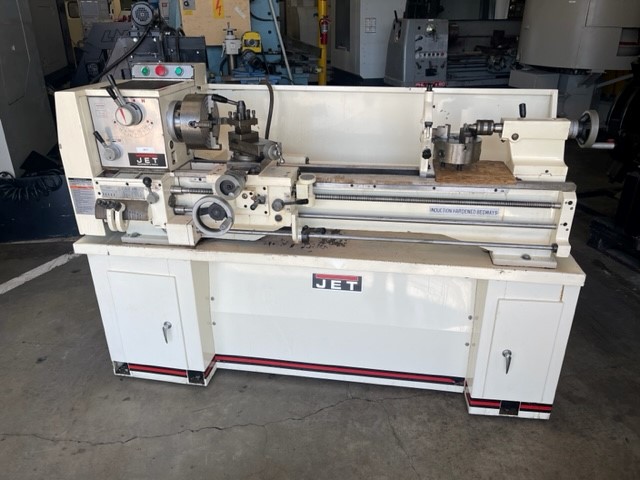

Jet GHB-1340 Engine Lathe 13" x 40" #6917 #2

Jet GHB-1340 Engine Lathe 13" x 40" #6917 #2

SPECIFICATIONS:

Swing Over Bed: 13"

Swing Over Gap: 18 3/4"

Swing Over Cross Slide: 7 25/32"

Distance Between Centers: 40"

Spindle Bore: 1 3/8"

Spindle Type: D1-4

Range of Spidle Speeds: 70-2000 RPM

Range of Inch Threads: 3 1/2-80 TPI

Range of Metric Threads: .45-10

Number of Longitudinal & Cross Feed Rates: 40

Range of Longitudinal Feeds: .0018-.0374

Range of Cross Feeds: .0006-.0130

Carriage Travel: 35"

Compound Slide Travel: 2 11/16"

Cross Slide Travel: 6 5/16"

Motor: 2 HP, Single Phase, 220 Volt

Dimensions: 79" x 28.5" x 30" x 60" H

Weight: 1500 lbs.

EQUIPPED WITH:

Face Plate

3 & 4 Jaw Chucks

Splash Guard

Tailstock

Steady Rest
