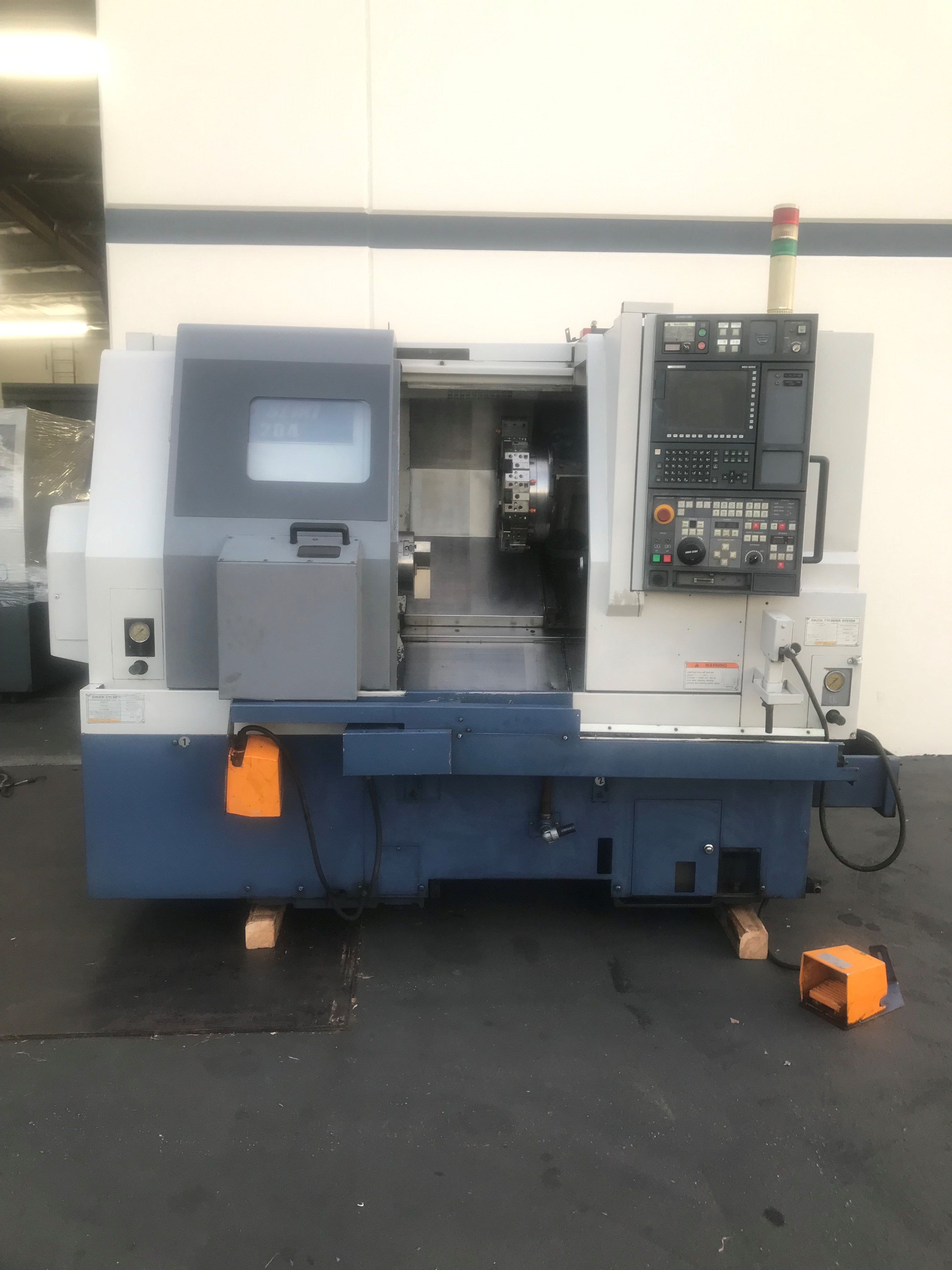

Mori Seiki SL-205S/500 CNC Turning Center W/ Sub Spindle 15.35" x 12.76" #6611 #2

Mori Seiki SL-205S/500 CNC Turning Center W/ Sub Spindle 15.35" x 12.76" #6611 #2

Pomona, CA

orCall 909-348-5610

Description


Mori Seiki SL-205S/500 CNC Turning Center W/ Sub Spindle 8.27" x 12.76" #6611 #2


Swing Over Bed: 26.77"

Swing Over Cross Slide: 20.08"

Maximum Distance between Spindles Noses: 29.61"

Maximum Turning Diameter: 15.35"

Standard Turning Diameter: 8.27"

Maximum Turning Length: 12.76"

Bar Work Capacity Main Spindle: 2.56"

Sub-Spindle Through-Spindle Hole Dia.: 1.69"

X-Axis Travel: 9.25"

Z-Axis Travel: 20.47"

Second Spindle Travel: 19.88"

Rapid Traverse X/Z: 708/944 IPM

Max. Spindle Speed: 4,500 RPM

Second Spindle Speed: 6,000 RPM

Main Motor Horse Power: 20 HP

Sub-Spindle Horse Power: 10 HP

Turret: 12 Stations

98" l-r , 75" f-b, about 6' H , 9700 lbs.  3 phase, 220 volt, 110A full load current



Equipped With:

MSX-805 III CNC Control

Power 3 Jaw Chuck On Main Spindle

Collet Attachment On Sub Spindle

Parts Conveyor

Coolant System

Specifications

ManufacturerMori Seiki
ModelSL-205S/500
Year2001
ConditionUsed
Serial NumberSL200AE1390
Stock Number6611
