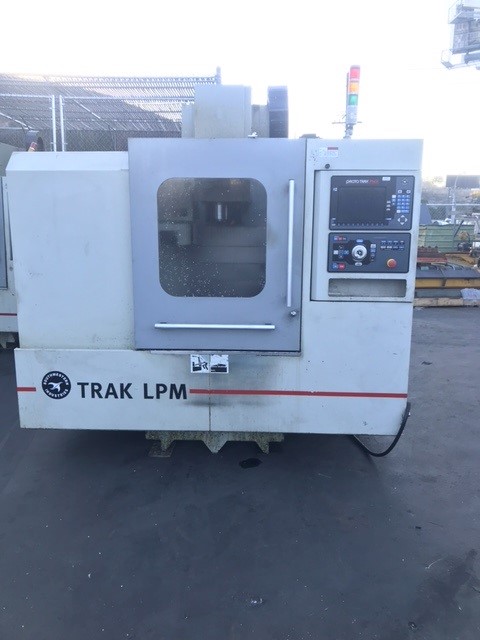

Southwestern Proto Trak LPM Vertical Machining Center 31" x 18.5" x 21" #6584 #1 PMX Control

Trax LPM Vertical Machining Center 31" x 18.5" x 21" #6584 #1

Table Size: 19.6" x 35.4"

X-Axis Travel: 31″

Y-Axis Travel: 18.5″

Z-Axis Travel: 21″

Spindle Nose to Table (Min.- Max.): 3 3/8″ – 24″

Max Weight on Table: 1,000 Lbs.

Spindle Taper: #40

Speed Range: 8,000 RPM

Rapid Traverse Rate (X-Y/Z): 800 IPM/700 IPM

Spindle Power: 15 HP

Max Torque: 90ft-lb @ 2,000 RPM

Automatic Tool Changer: 16 Station

Overall Dimensions: 13' 9″ x 7' 3" x 9' High

Weight: 11,000 Lbs.

Equipped With:

ProtoTrax PMX CNC Control

Chip Augar

Auto Lube System

Coolant System
