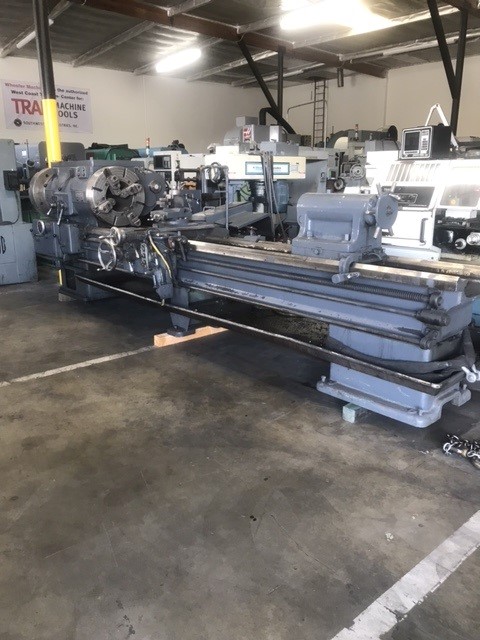

Lehmann 25" Large Bore Hollow Spindle Lathe 27" x 10' x 12" #6524

Lehmann 25" Large Bore Hollow Spindle Lathe 27" x 10' x 12" #6524

Pomona, CA

orCall 909-348-5610

Description

Lehmann 25" Large Bore Hollow Spindle Lathe 27" x 10' x 12" #6524


Swing Over Bed: 27 1/2"

Swing Over Cross Slide: 18 1/4"

Distance Between Centers: 10'

Spindle Speeds: 7- 270 RPM

Hole Through Spindle: 12"

Cross Slide Travel: 15"

Feeds: 0.006- 0.327 IPR

Threads:

Inch: 5/8- 36 TPI

Tailstock Quill Taper: #5 MT

Tailstock Quill Travel: 12 1/2"

Motor: 30 HP

Weight: 17,000 Lbs.


Equipped With:

2 24" 4 Jaw Chucks With 12" Through Hole

Taper Attachment

Tool Post

Coolant System

Hardened & Ground Bed Ways

Specifications

ManufacturerLehmann
Model25" Large Bore Hollow Spindle
ConditionUsed
Serial Number5885
Stock Number6524
