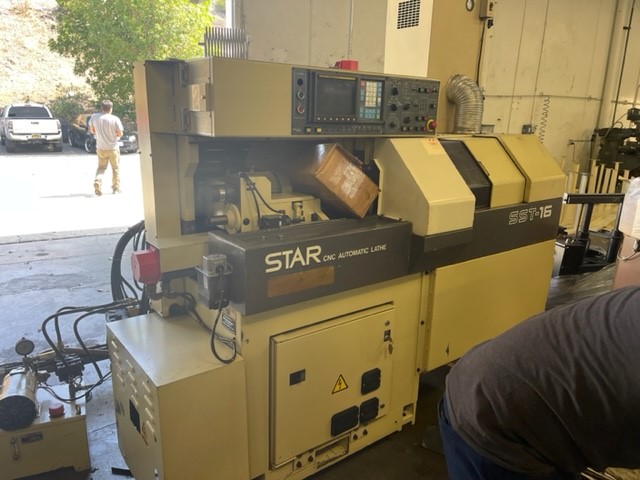

Star SST-16 CNC Swiss Screw Lathe 5/8" #6491 #2

Star SST-16 CNC Swiss Screw Lathe 5/8" #6491 #2

Pomona, CA

orCall 909-348-5610

Description

Star SST-16 CNC Swiss Screw Lathe 5/8" #6491 #2


CNC Control: Fanuc 0TT

Live Tooling

Max. Turning Dia.: 5/8"

Max. Headstock Stroke in one chucking: 12"

Max. Drilling Dia.: 5/16"

Max. Milling Dia.: 2/5"

Max. Slotting Capacity: 1.5mm x 4mm

Spindle Speed: 500 - 10,000 rpm

Spindle Indexing: 15 degree

Main Spindle Motor: 2.2 kw/3.7 kw

Power Driven Attachment Motor: .4 kw

Rotary Tool Speeds: 350 - 5,000 rpm

Backworking: Max. Chucking Dia.: 5/8"

Max. Length for Front Ejection: 5"

Max. Drilling Dia.: 1/4"

Sub-spindle Speed: 400 - 6,000 rpm

Sub-spindle Motor: 1.5 kw

Weight (approx.): 5,080 lbs

Dimensions (approx.): 6.73' x 3.25' x 5.53'

*Specifications assumed to be correct. Verification is responsibility of the buyer.


Specifications

ManufacturerStar
ModelSST-16
ConditionUsed
Serial Number010362
Stock Number6491
