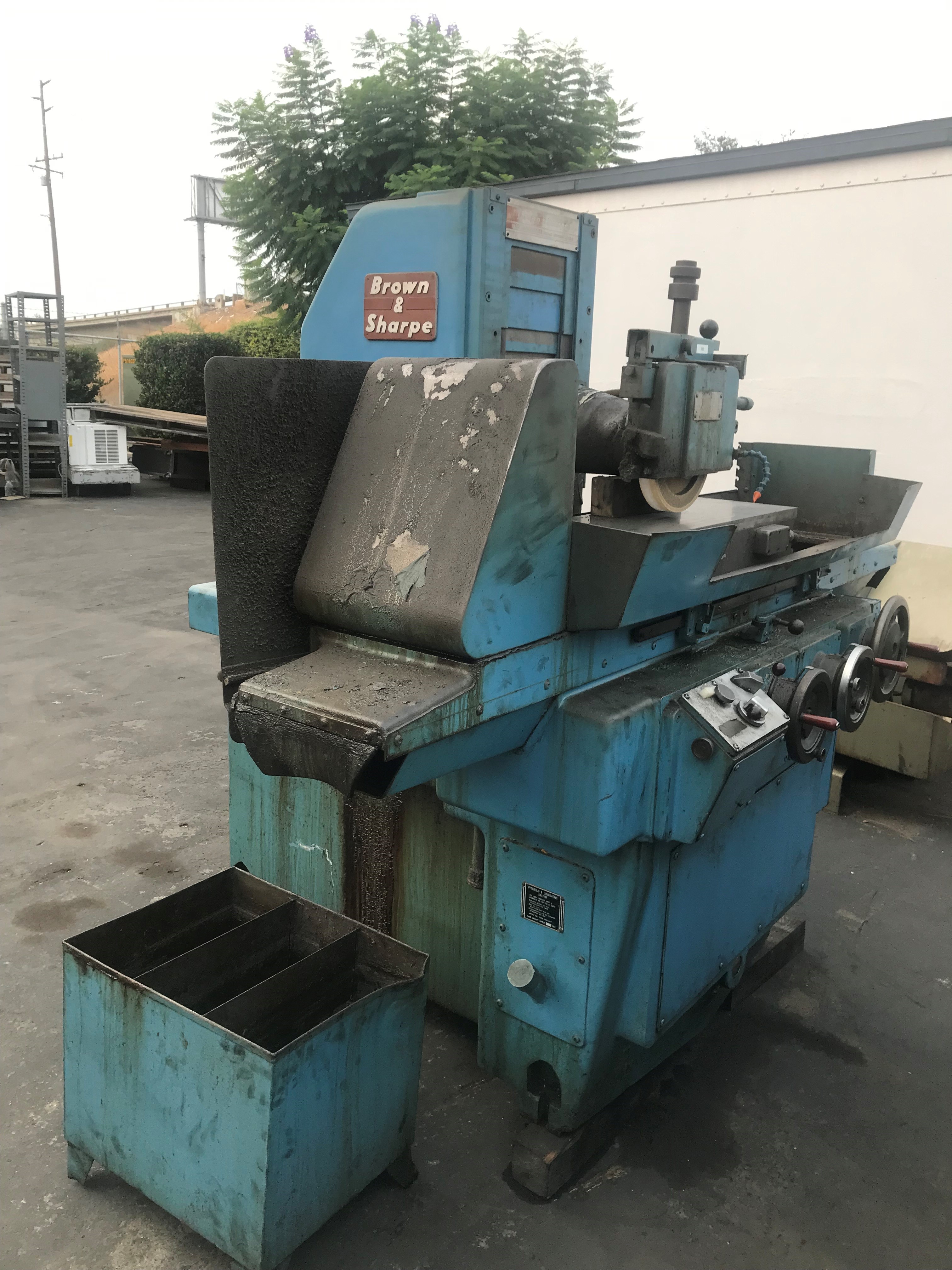

Brown & SHarpe 1030 Micromaster Automatic Hydraulic Surface Grinder 10" x 30" #6490 #1

Brown & SHarpe 1030 Micromaster Automatic Hydraulic Surface Grinder 10" x 30" #6490 #1

WORKTABLE SIZE: 10" X 30"

GRINDS WORK TO HEIGHT OF: 18" (W/14" WHEEL)

WHEEL SIZES: 14" X 1- 1/2" X 5"

DIRECT DRIVE SPINDLE MOTOR: 5 HP - 1800 RPM

LONGITUDINAL TABLE SPEED: 10 - 125 FPM

AUTO CROSSFEED PER TABLE REVERSAL: 0.010 - .500"

POWER WHEEL TRUING: 10" IPM

CROSS HANDWHEEL, GRAD.: 0.0002"

RAPID TRAVERSE POSITIONING: 150 IPM

RAPID VERTICAL POWER POSITIONING: 40 IPM

VERTICAL HANDWHEEL, GRAD. .................... 0.0002"

FINE FEED KNOB (GRAD.) FOR VERTICAL FEED: 0.0001"

APPROX. MACHINE WEIGHT: 6,000 LBS

 EQUIPPED WITH:

HYDRAULIC LONGITUDINAL & CROSS FEEDS

POWER RAPID WHEELHEAD POSITIONING (UP & DOWN)

14" GRINDING WHEEL

10" x 30 ELECTRO-MAGNETIC CHUCK WITH CONTROL

OVER-THE-WHEEL DRESSER

COOLANT SYSTEM

AUTO LUBRICATION

OIL COOLER
