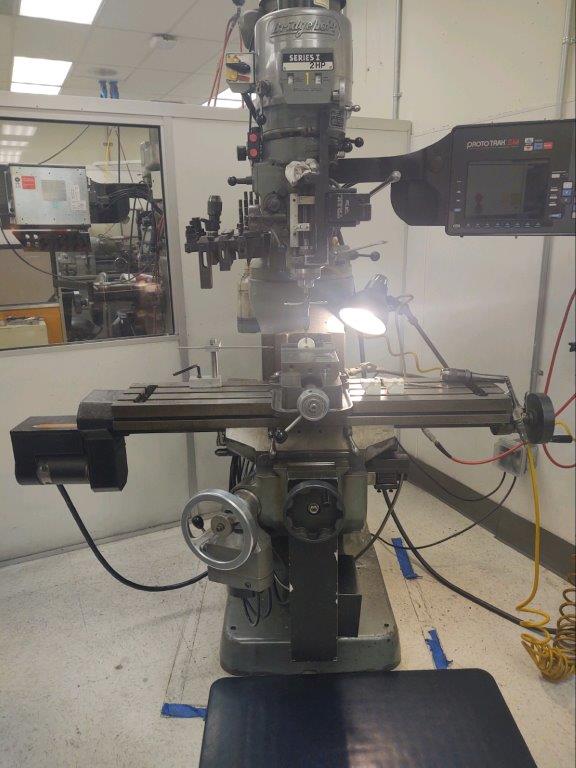

Bridgeport Series 1 Proto Trak CNC 2 Axis Knee Type Vertical Mill 9" x 48" (2004) #6470 #1

Bridgeport Series 1 Proto Trak CNC 2 Axis Knee Type Vertical Mill 9" x 48" (2004) #6470 #1

Machine Was Removed From Medical Instrument Co.

Table Size: 9" x 48"

Table Longitudinal Travel: 36"

Saddle Cross Travel: 12"

Vertical Knee Travel: 16"

Spindle Speeds (Variable): 60- 4,2000 RPM

Spindle Nose: R- 8

Spindle Quill Travel: 5"

Spindle Quill Feeds (3): 0.0015"- 0.003"- 0.006"

Ram Travel: 12"

Motor: 2 HP

Floor Space: 7' x 10'

Weight: 2,000 Lbs.

Equipped With:

Proto Trak SM CNC Control

3 Axis Digital Readout (X-Y & Quill)

Servo Knee Power Feed

Kurt Power Draw Bar

Chrome Ways

One Shot Lube System
