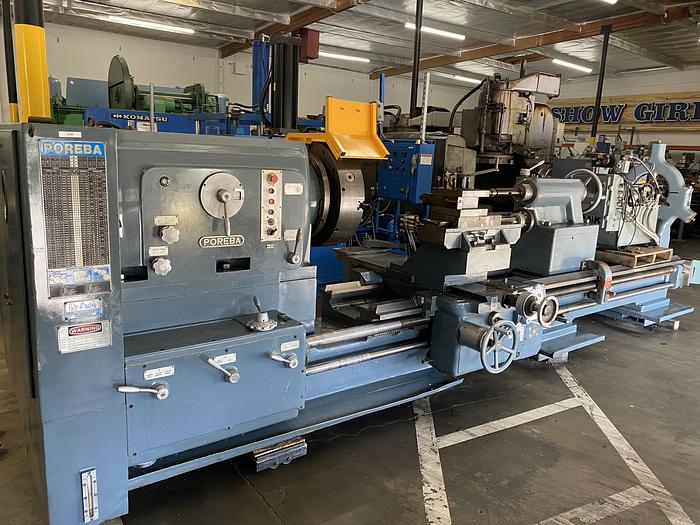

Poreba TR-135B1 Heavy Duty Engine Lathe 53"/65" x 118" #6448 #2

Used Poreba TR-135B1 Heavy Duty Engine Lathe 53"/65" x 118" #6448 #2

Serial # 1191-234

SWING OVER BED WAYS: 53-1/8"

SWING OVER CROSS SLIDE: 41-3/8"

SWING IN GAP: 65"

DISTANCE BETWEEN CENTERS: 120"

WIDTH OF BED: 26"

SPINDLE SPEEDS (21): 5 TO 500 RPM

WORKPIECE WEIGHT BETWEEN CENTERS: 17,500 LBS

HOLE THRU SPINDLE: 4-3/4"

SPINDLE NOSE: A1-11" AMERICAN STANDARD

INCH THREADS (61): 1/2" TO 60 TPI

METRIC PITCHES (62): 1 TO 120 MM/REV.

LONGITUDINAL FEED RANGE (70): 0035 TO .400 IPR

CROSS FEED RANGE (70): 0017 TO .200 IPR

TOP SLIDE FEED RANGE (70): 0008 TO .100 IPR

TAILSTOCK QUILL DIAMETER: 5-1/2"

QUILL TRAVEL: 12"

TAILSTOCK SPINDLE TAPER: #6 MT

24’ x 7” 10 x 5’ 5” H

28,000 lbs.

Equipped With:

BUCK ADJUST TRUE 3 JAW CHUCK

ROLLER TYPE STEADY REST

MIMIK DYNATRACE TRACER ATTACHMENT

TRAV-A-DIAL ON CARRIAGE

CHUCK GUARD

INCH & METRIC THREADING

HARDENED & GROUND BEDWAYS, SOLID TRIPLE V BED

POWER COMPOUND

POWER RAPID TRAVERSE

FOUR WAY TOOLPOST

50 HORSE POWER MAIN MOTOR
