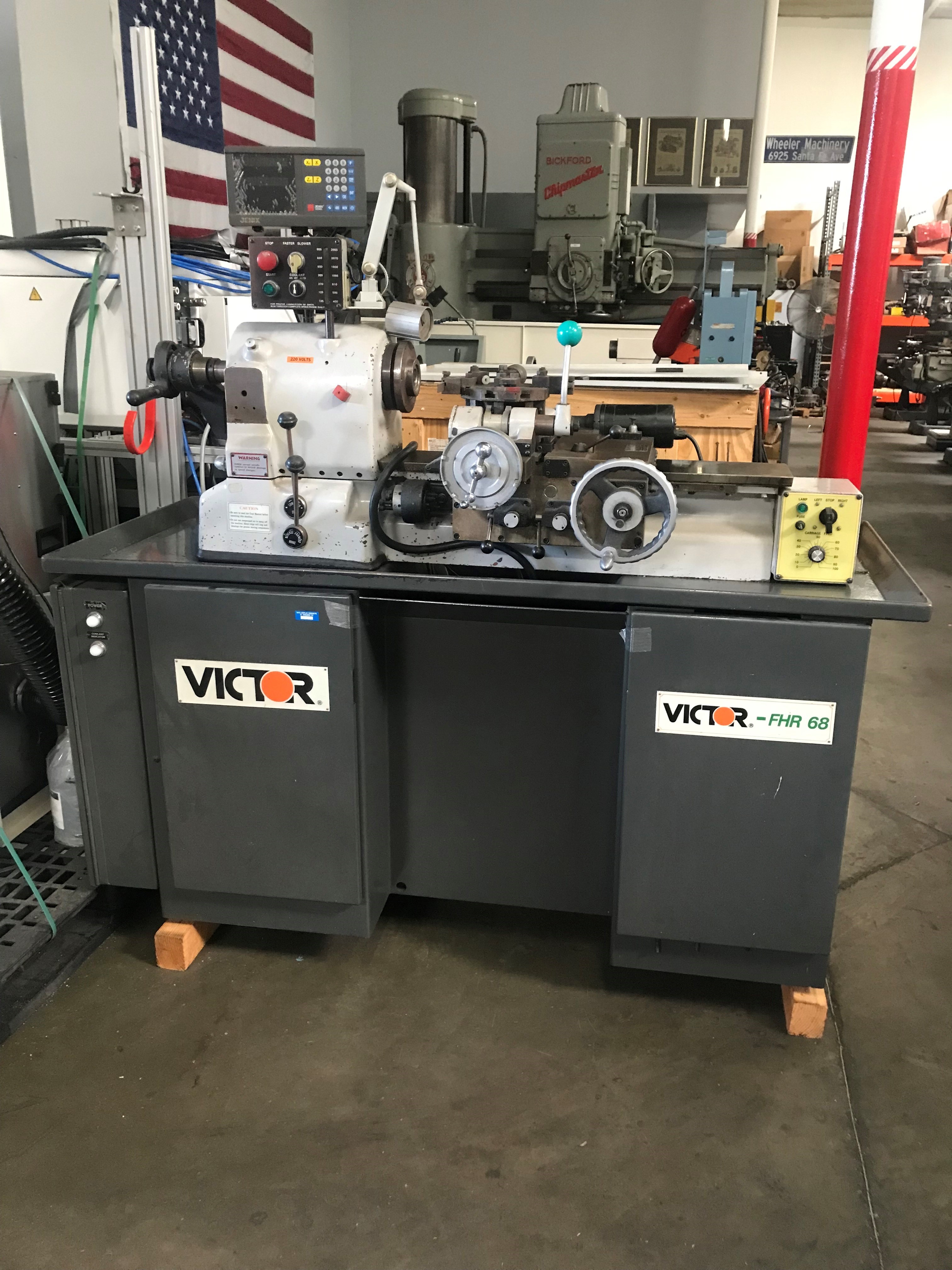

Victor FHR-68 Chucker 13" x 14" #6434 #1

Victor FHR-68 Chucker 13" x 14" #6434 #1

Pomona, CA

orCall 909-348-5610

Description

Victor FHR-68 Chucker 13" x 14" #6434 #1


Spindle Capacity With Chucks: 6"

Spindle Capacity With Expanding Collets: 3"

Spindle Capacity With 5C Collets: 1 1/16"

Spindle Capacity With Hexagon 5C Collets: 7/8"

Spindle Capacity With Square 5C Collets: 3/4"

Spindle Capacity With Step Chucks: 1 1/16"-6"

Spindle Nose Diameter: 2.189"

Hole Thru Spindle: 1 1/4"

Variable Spindle Speeds: 0- 4000 Rpm

Capacity Over Bed: 12.992"

Max. Fixture Diameter: 9"

Max. Distance From Face Of Turret To Spindle: 14"

Carriage Power Feed Range: 0.236"-9.842" (Variable)

Cross Slide Power Feed Range: 0.354"-6.229" (Variable)

Cross Slide Travel: 4.488"

Motor: 3 HP

Coolant Pump: 1/8 HP

Feed Inverter Motor: 1/2 HP

Machine Dimensions: 74" x 34" x 74" H

Machine Weight: 2,420 lbs.


Equipped With:

Jenix Digital Readout System

3 Jaw Chuck

Turret Tooling

Lever 5C Collet Closer

One Shot Lube System

Work Light

Specifications

ManufacturerVictor
ModelFHR-68
ConditionUsed
Serial Number8612012
Stock Number6434
