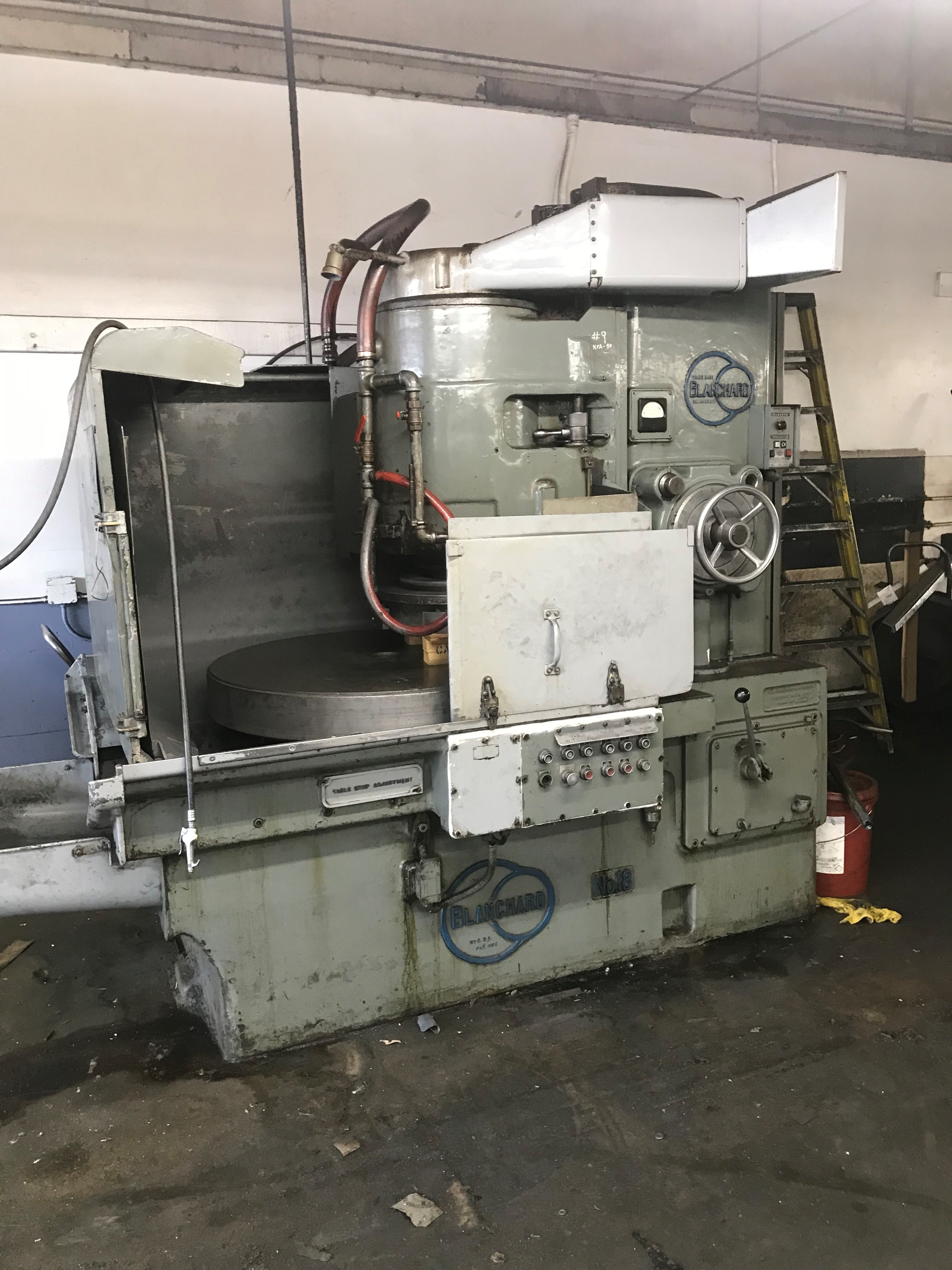

BLANCHARD 18-42 VERTICAL ROTARY Surface GRINDER 42" X 18" #6379 #2

BLANCHARD 18-42 VERTICAL ROTARY Surface GRINDER 42" X 18" #6379 #2

Serial # 10717

CHUCK DIAMETER: 42"

SWING INSIDE GUARDS: 48"

HEIGHT UNDER NEW WHEEL: 15"

MAX. WEIGHT OF WORK LOAD ON CHUCK: 2,000 LBS

GRINDING WHEEL DIAMETER: 18"

WHEEL SPEED: 720 RPM

CHUCK SPEEDS (6): 6 TO 33 RPM

INF. VARIABLE POWER DOWNFEED: 0.004" TO .080" IPM

MOTOR: 35 HP

APPROX. DIMENSIONS: 111"L X 61"W

APPROX. WEIGHT: 13,500 LBS

EQUIPPED WITH:

42" ELECTRO MAGNETIC CHUCK

VARIABLE CHUCK CONTROL

POWER TRAVERSE TABLE

WHEEL DRESSER

COOLANT SYSTEM
