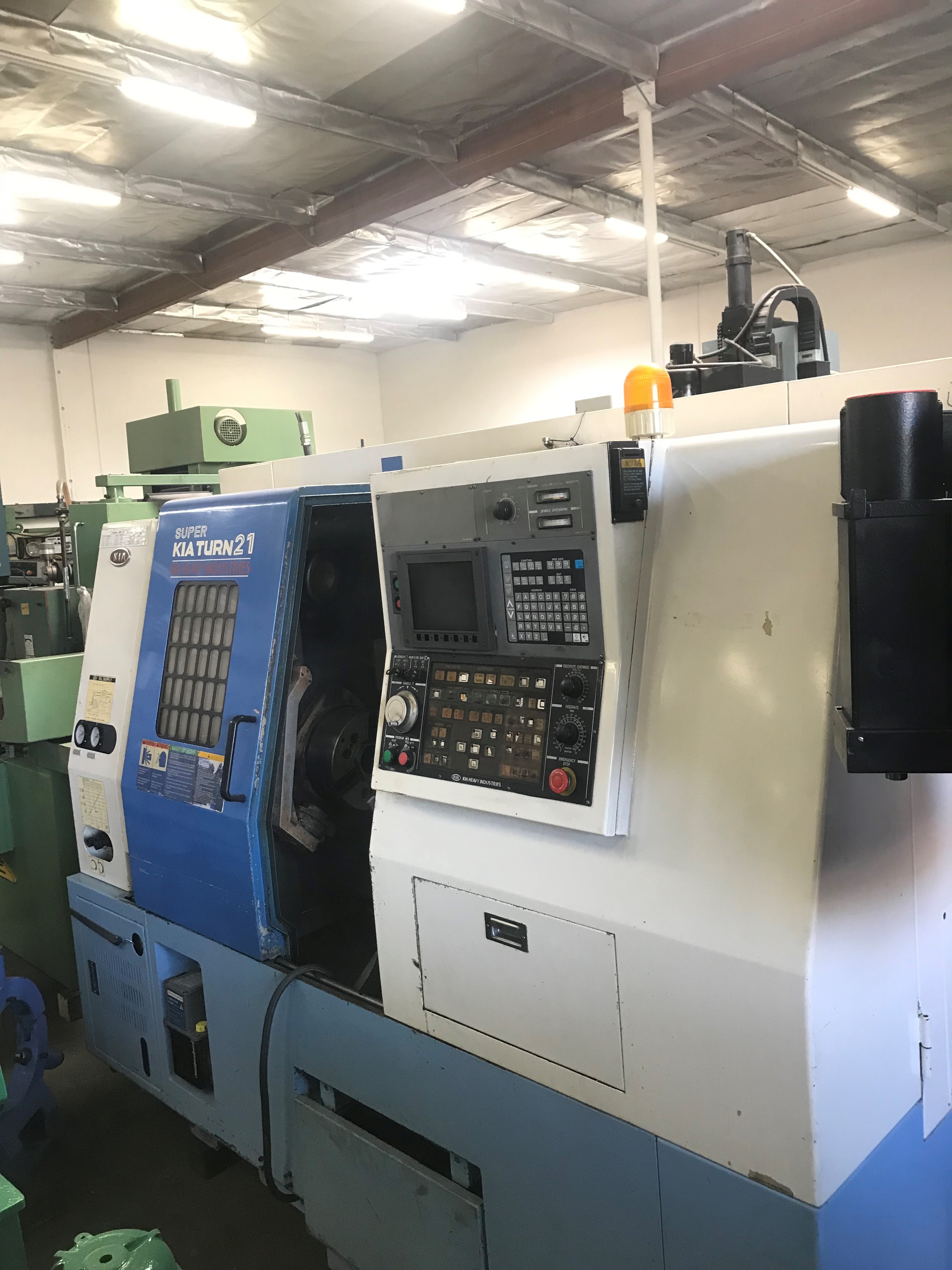

Kia Super Turn 21 CNC Turning Center 13.78" x 16.14" #6366 #1

Kia Super Turn 21 CNC Turning Center 13.78" x 16.14" #6366 #1

Pomona, CA

orCall 909-348-5610

Description

Kia Super Turn 21 CNC Turning Center 13.78" x 16.14" #6366 #1


Max Turning Diameter: 13.78″

Max Turning Length: 16.14″

Max Bar Capacity: 2.0″

Swing Over Bed: 21.65″

X Axis Travel: 8.27″

Z Axis Travel: 16.93″

Rapid Traverse X Axis: 590 IPM

Rapid Traverse Z Axis: 787 IPM

Spindle Nose: A2-6

Spindle Bore: 2.4″

Spindle Speed: 40 – 4,000 RPM

Spindle Motor: 15/20 hp

Turret Capacity: 12 Stations

Tailstock Travel: 15.75″

Overall Dimensions: 95″ x 68″ x 75″ High

Weight: 9,000 Lbs.


Equipped With:

Yasnac CNC Control

Power 3 Jaw Chuck

Turret

Tailstock

Specifications

ManufacturerKia Turn
ModelSuper Turn 21
Year1998
ConditionUsed
Serial NumberSKT21 021
Stock Number6366
