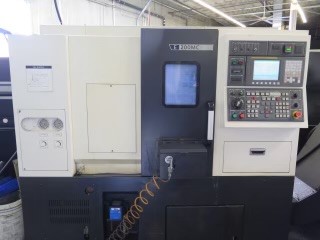

HYUNDAI WIA E200 MC CNC LIVE TURRET TURNING CENTER 11.4" X 10" #6345
2016 model, delivered 2017
SWING OVER BED: 21.7”
SWING OVER CARRIAGE: 13.8”
MAXIMUM TURNING DIAMETER: 11.4”
MAX TURNING LENGTH: 10”
SPINDLE NOSE: TYPE A2-6
CHUCK / BAR CAP: 8” / 2.56”
SPINDLE SPEED: 4000 RPM
TOOL TURRET POSITIONS: 12 ~ LIVE TOOL
MILLING TOOL SPEED: 4500 RPM
MILLILNG HOLDER TYPE: VDI-30
C AXIS INDEXING: 0.001 Deg.
X AXIS TRAVEL: 8.3”
Z AXIS TRAVEL: 11.3”
TAILSTOCK QUILL DIAMETER: 2.56”
TAILSTOCK QUILL TRAVEL: 6.3”
TAILSTOCK QUILL TAPER: MT #4
MACHINE WEIGHT: 8,600 lbs.
Machine Dims: 81”x65”. Floor space with Conveyor: 133”.
EQUIPPED WITH:
FANUC i SERIES CNC CONTROL
COLLET CHUCK
TOOL PRESETTER
RIGID TAPPING
FULL "C" AXIS
LIVE TAPPING
PARTS CATCHER
CHIP CONVEYOR
HIGH PRESSURE COOLANT SYSTEM
