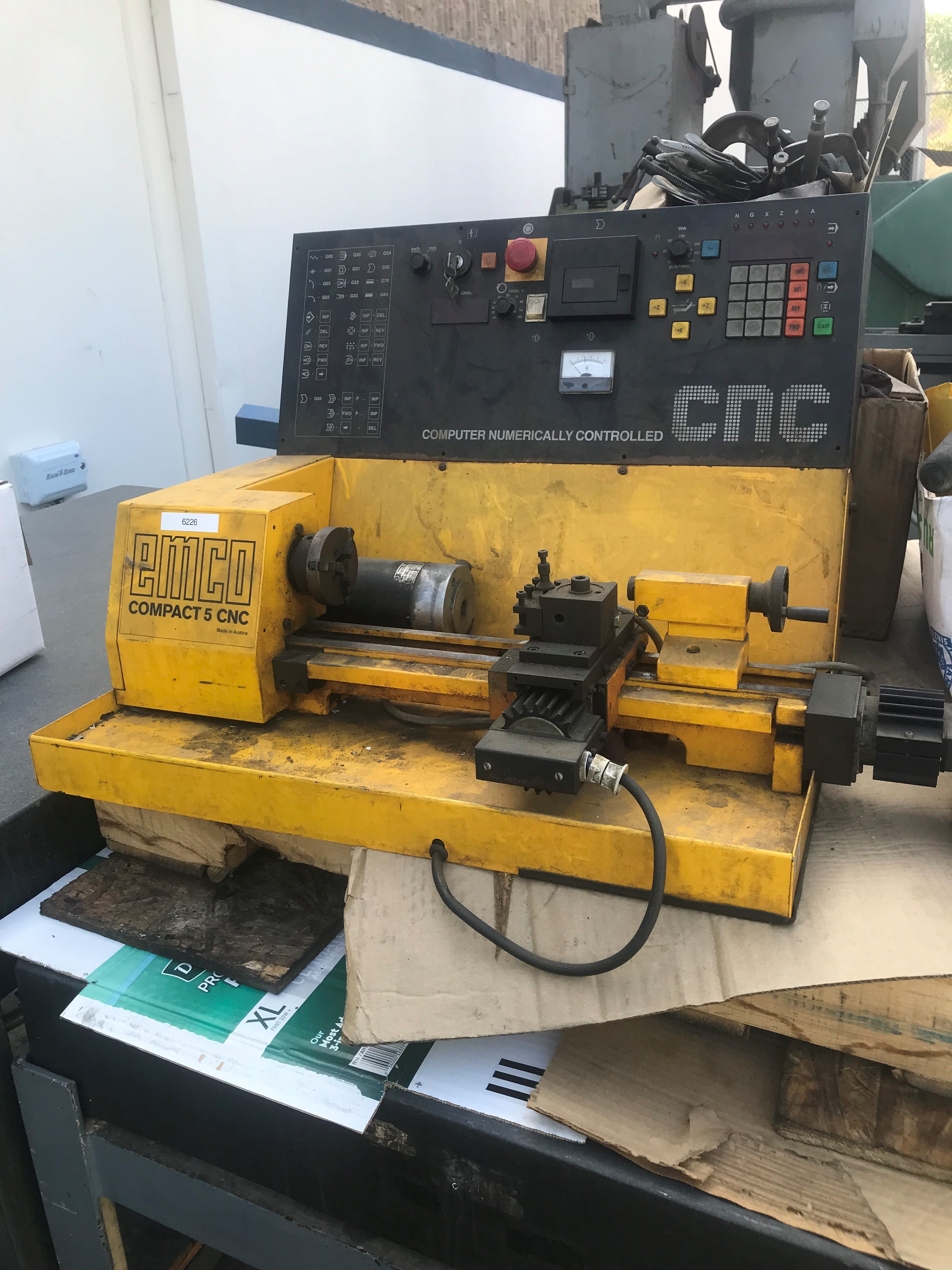

EMCO COMPACT 5 CNC BENCH LATHE 5" x 13" #6226 #2

EMCO COMPACT 5 CNC BENCH LATHE 5" x 13" #6226 #2

Swing Over Bed: 5"

Swing Over Cross Slide: 2 1/4"

Distance Between Centers: 13"

Longitudinal Slide Travel: 11.82"

Cross Slide Travel:1.97"

Spindle Speeds: 50- 3,200 RPM

Hole Through Spindle: .63"

Spindle Taper: #2 MT

Feed Rates (Hand Operation): .394- 15.76 IPM

Feed Rates (Programmable): .394- 19.66 IPM

Rapid Traverse Rate: 27.58 IPM

Tailstock Nose: #1 MT

Tailstock Quill Travel: 1 1/2"

Spindle Drive Motor: 500W

Equipped With:

3" 3 Jaw Chcuk

Tool Post

Operation Manual
